Engine Block Heater-Installation-4.0L

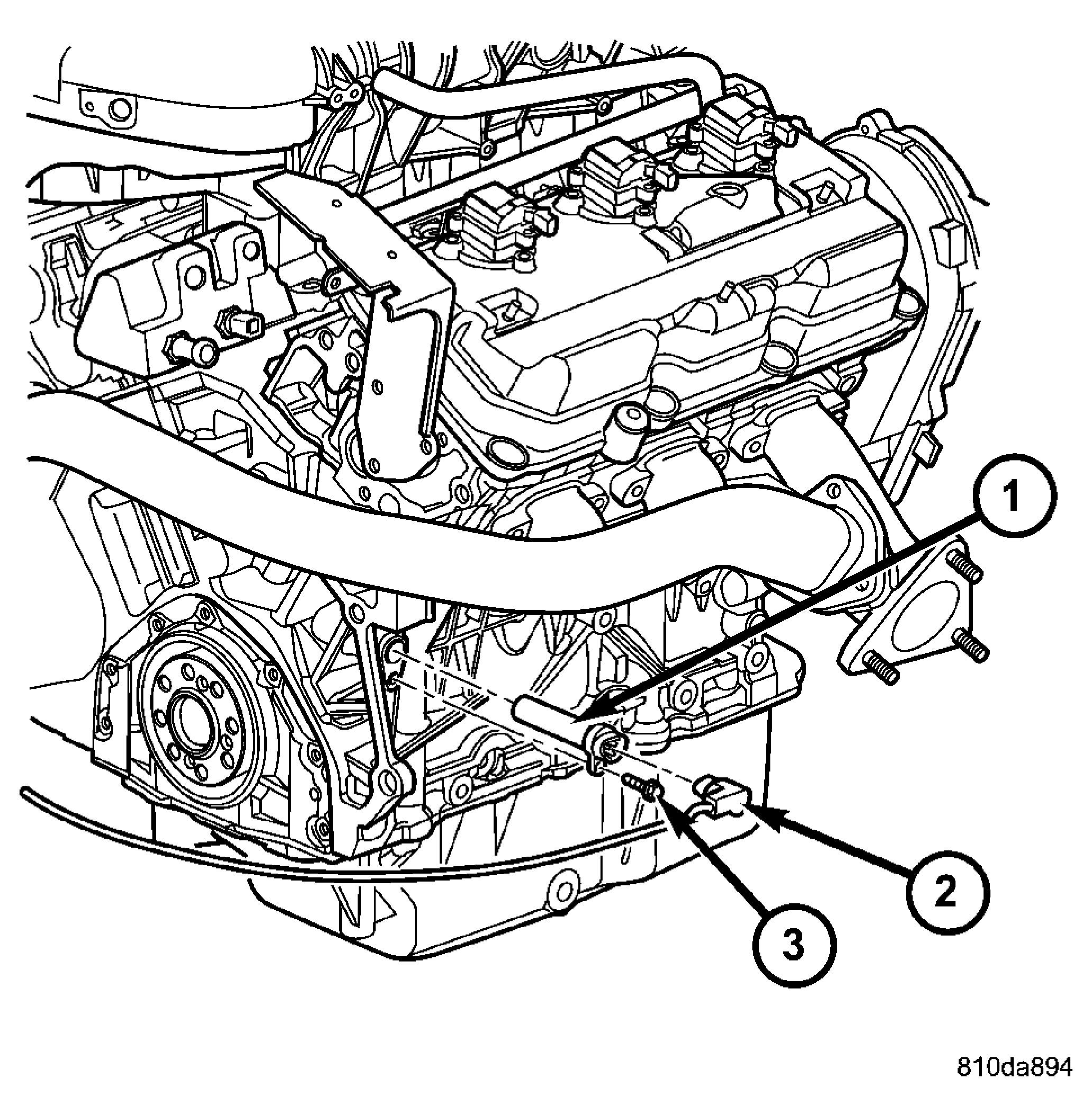

Fig 1: Block Heater And Electrical Connector 4.0L
GC0001721Courtesy of CHRYSLER LLC
1 - BLOCK HEATER
2 - ELECTRICAL CONNECTOR
2 - BOLT
  1. Clean block core hole and heater seat.
  2. Insert heater assembly.
  3. With heater seated, tighten screw securely to assure a positive seal.
  4. Install power cord plug to heater.
