Module-Sentry Key Remote Entry

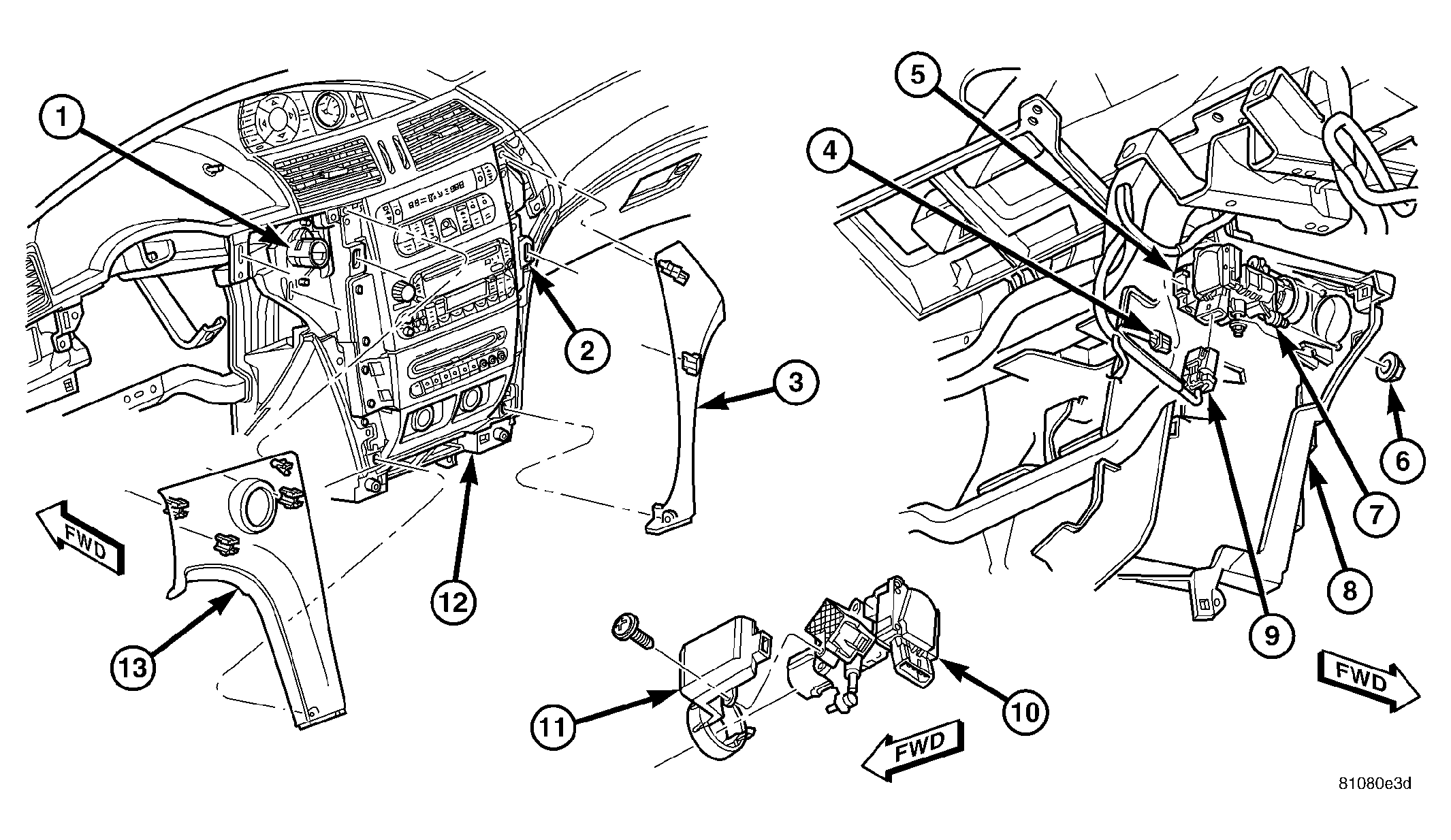

Fig 1: SKREEM - Remove/Install
GC0000188Courtesy of CHRYSLER LLC
  1. Open hood, disconnect and isolate the battery negative cable.
    WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service. Failure to do so may result in accidental airbag deployment, personal injury or death.
  2. Remove knee blocker airbag. Refer to REMOVAL .
  3. Unsnap instrument panel center stack left bezel (13) from instrument panel assembly (12).

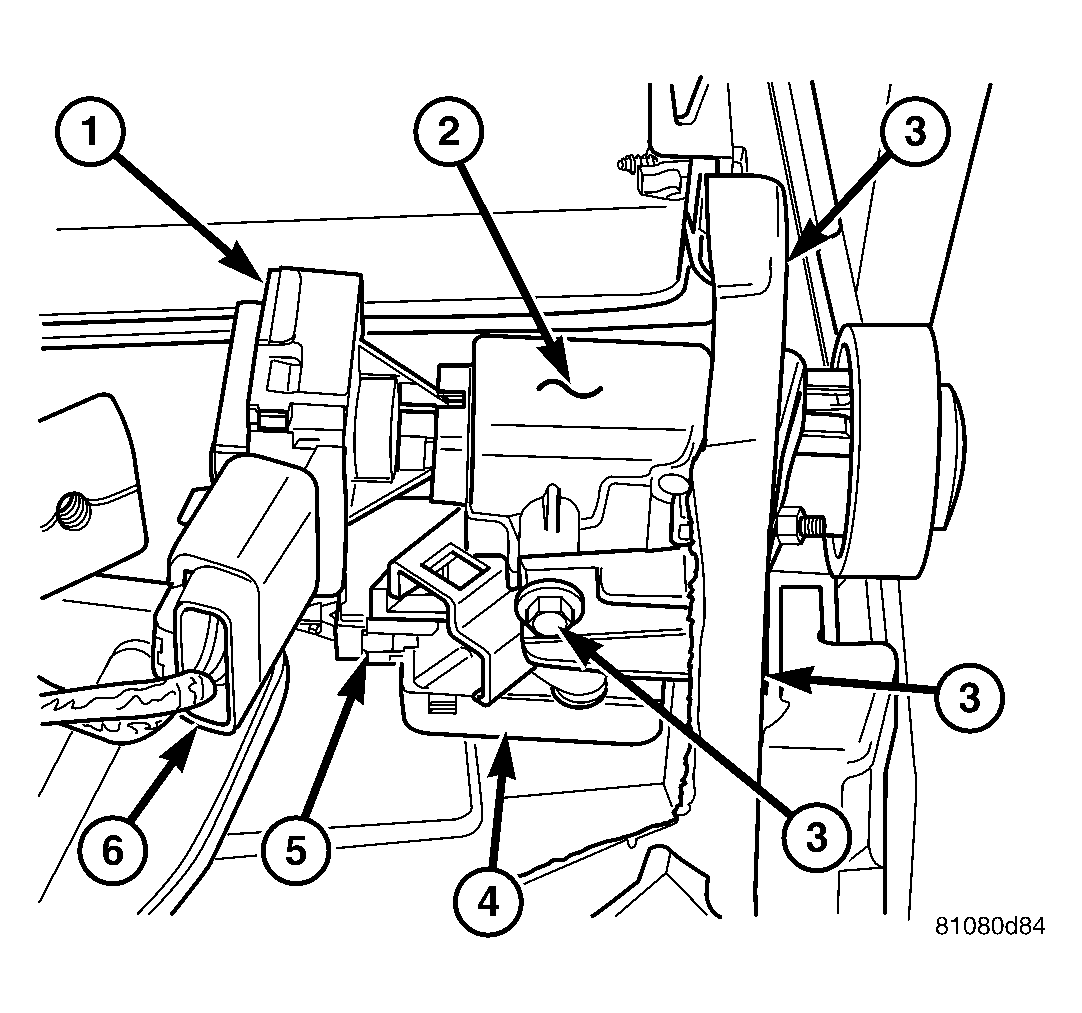

    Fig 2: Ignition Switch/SKREEM Electrical Connector - Remove/Install
    GC0000186Courtesy of CHRYSLER LLC
  4. Reach up behind the left side of the center stack and disconnect the ignition switch and SKREEM electrical connectors (5 and 6).

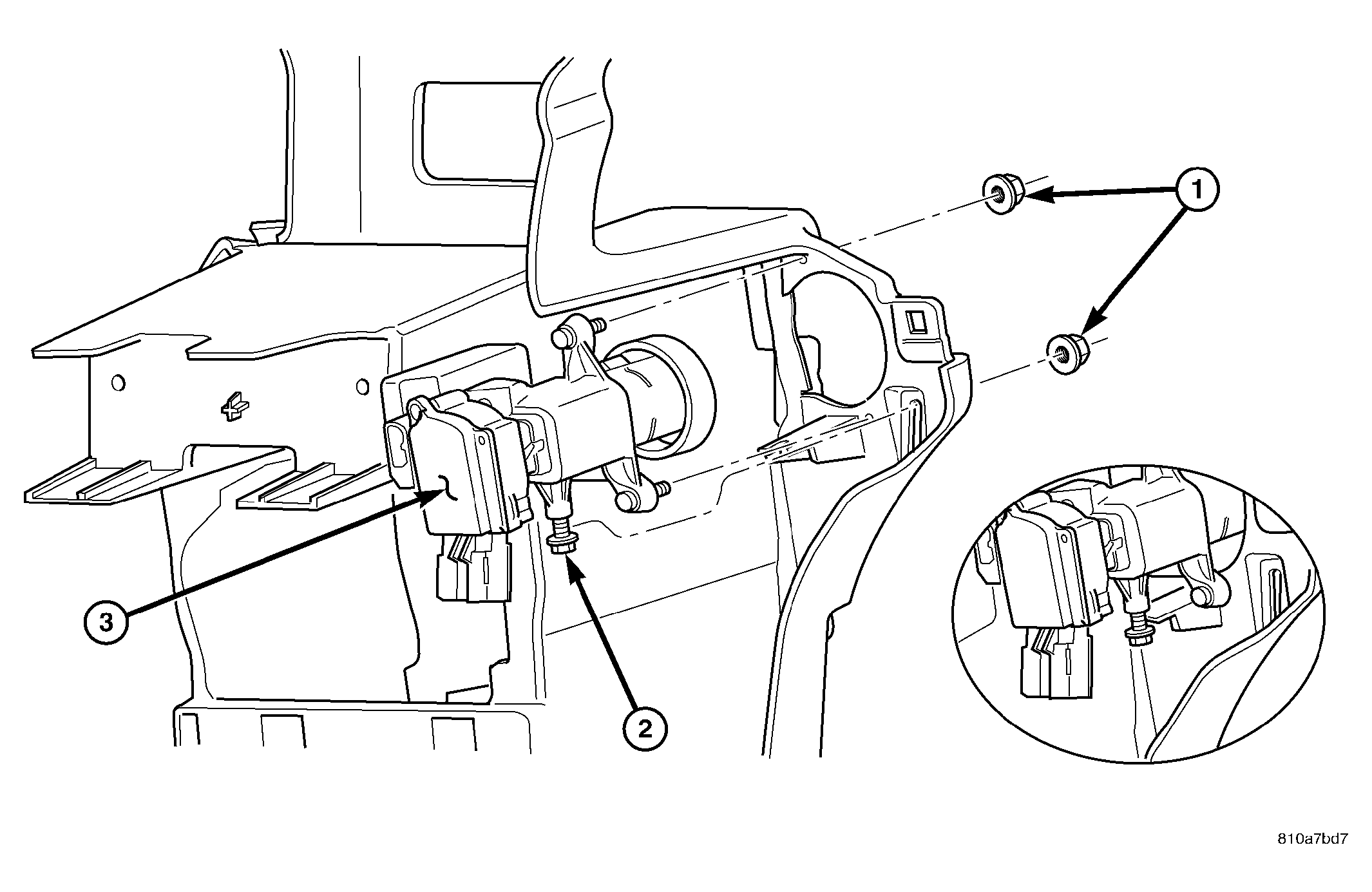

    Fig 3: SKREEM/Ignition Cylinder Mounting
    GC0000189Courtesy of CHRYSLER LLC
  5. From underneath the ignition switch/lock assembly, loosen the lower retaining screw (2).
  6. Remove the two mounting nuts (1) from the front of the instrument panel.
  7. Push the ignition switch/lock assembly (3) inward toward the bulkhead.

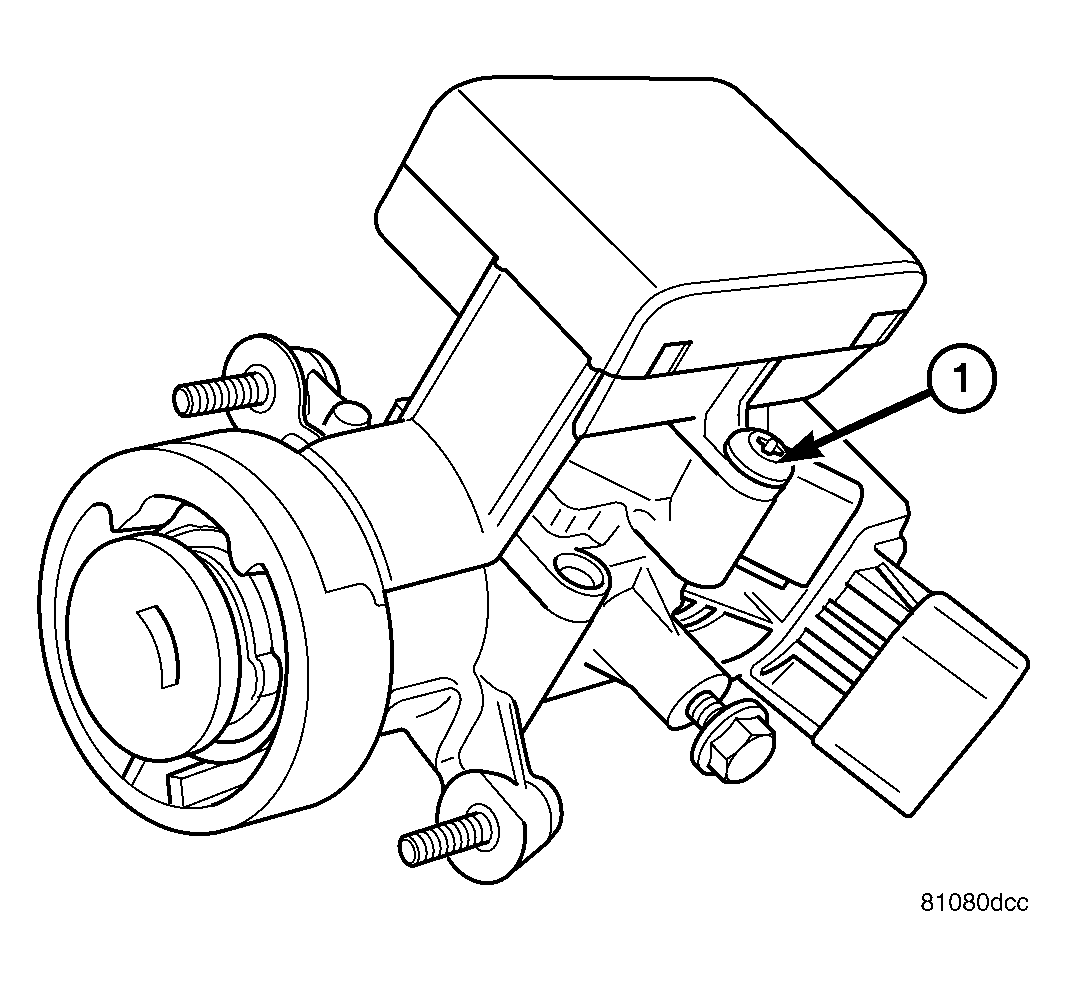

    Fig 4: SKREEM from Ignition Cylinder Assembly
    GC0000187Courtesy of CHRYSLER LLC
  8. Remove the SKREEM mounting screw (1) on the ignition lock assembly and separate the SKREEM from the ignition lock assembly.
