Positive Battery Connector End View

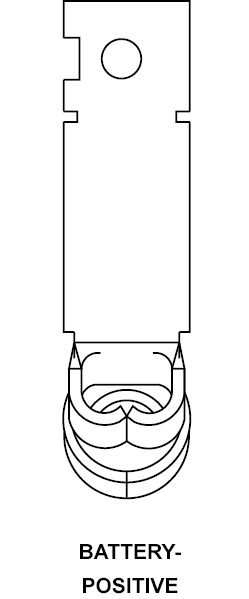

BATTERY-POSITIVE - 1-WAY

GCS780330Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A1 4RD FUSED B(+)
1 A8 4RD FUSED B(+)
