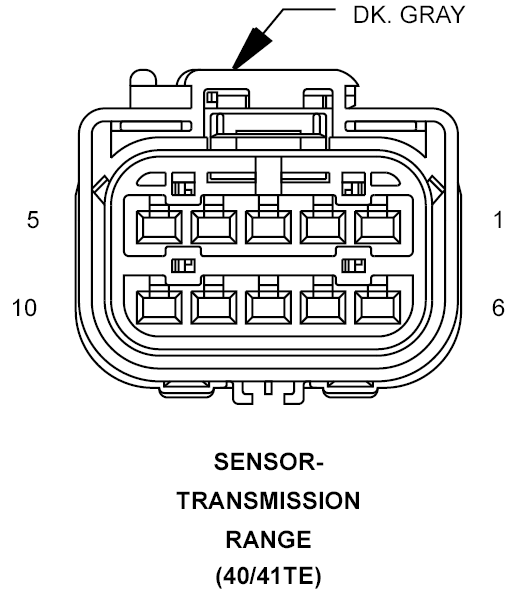

Transmission Range Sensor (40/41TE) Connector End View
SENSOR-TRANSMISSION RANGE - DK. GRAY 10-WAY (40/41TE)
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | K900 20DB/DG | SENSOR GROUND |
| 4 | T54 18DG/OR | TRANSMISSION TEMPERATURE SIGNAL |
| 5 | T41 18YL/DB | TRS T41 SIGNAL |
| 6 | - | - |
| 7 | T1 18LB/DG | TRS T1 SIGNAL |
| 8 | T3 18DG/DB | TRS T3 SIGNAL |
| 9 | T42 18DG/YL | TRS T42 SIGNAL |
| 10 | T41 18YL/DB | TRS T41 SIGNAL |
