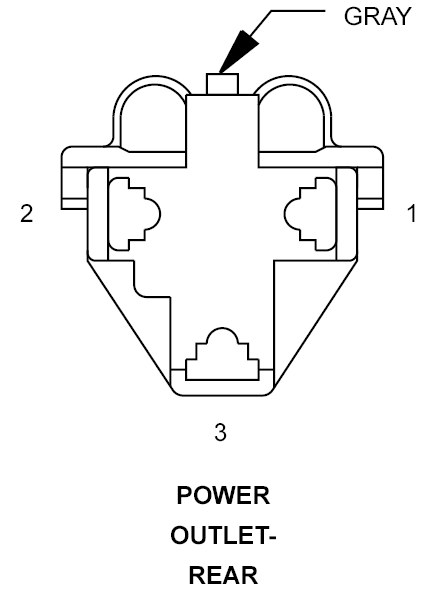

Rear Power Outlet Connector End View
POWER OUTLET-REAR - GRAY 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F307 16LB/PK |
FUSED ACCESSORY RELAY OUTPUT |
| 2 |
- |
- |
| 3 |
Z737 16BK/LB |
GROUND |
