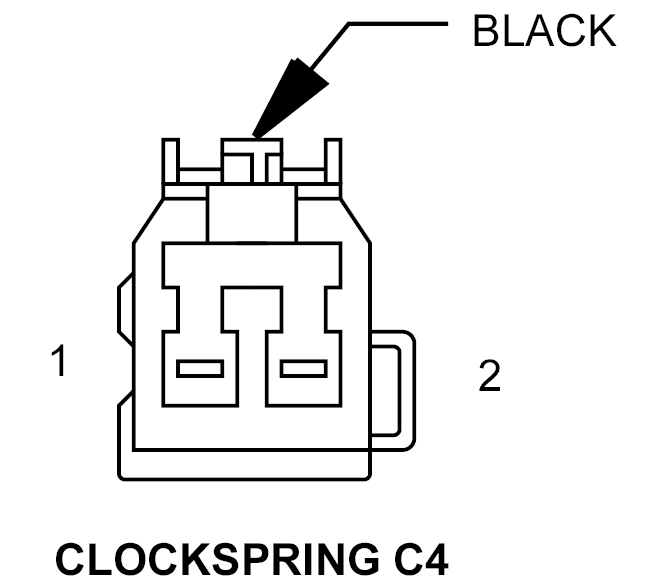

Clockspring Connector End View (C4)
CLOCKSPRING C4 - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
V38 20VT/OR |
S/C SIGNAL 2 |
| 1 |
V38 20VT/OR |
S/C SIGNAL 2 |
| 2 |
X3 20DG/VT |
HORN SWITCH SENSE |
