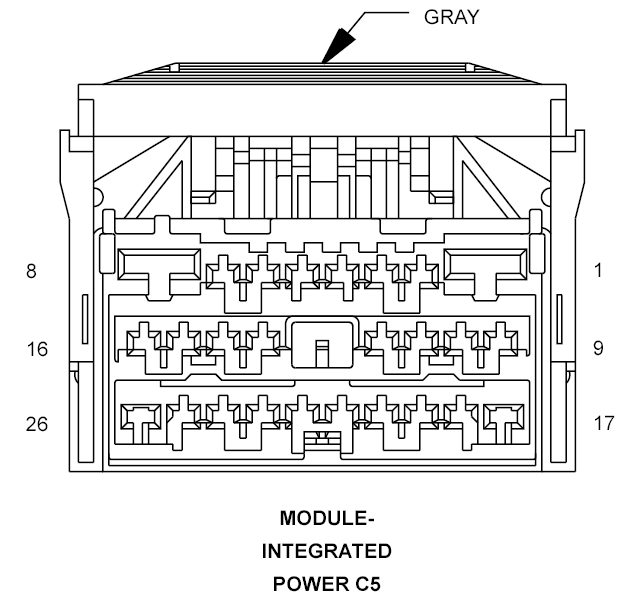

Integrated Power Module Connector End View (C5)
MODULE-INTEGRATED POWER C5 - GRAY 26-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A104 14YL/RD | FUSED B(+) |
| 2 | L89 18WT/YL | LEFT FRONT FOG LAMP DRIVER (FOG LAMPS) |
| 3 | W1 18BR/TN | WASHER FLUID LEVEL SWITCH SENSE |
| 4 | - | - |
| 5 | W10 18BR | FRONT WASHER PUMP MOTOR CONTROL |
| 6 | L778 20WT/LB | RIGHT FRONT PARK LAMP DRIVER |
| 7 | L777 20WT/VT | LEFT FRONT PARK LAMP DRIVER |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | W20 18BR/YL | REAR WASHER PUMP MOTOR CONTROL |
| 14 | Z118 18BK/YL | GROUND |
| 15 | - | - |
| 16 | L44 16TN/WT | RIGHT LOW BEAM LAMP DRIVER |
| 17 | L90 18WT/OR | RIGHT FRONT FOG LAMP DRIVER (FOG LAMPS) |
| 18 | L33 18WT/DG | LEFT HIGH BEAM LAMP DRIVER |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | L34 16WT/GY | RIGHT HIGH BEAM LAMP DRIVER |
| 23 | X2 16DG/OR | HORN RELAY OUTPUT |
| 24 | L77 20WT/BR | LEFT FRONT SIDE MARKER LAMP DRIVER |
| 25 | L43 18WT/DB | LEFT LOW BEAM LAMP DRIVER |
| 26 | L78 20OR/WT | RIGHT FRONT SIDE MARKER LAMP DRIVER |
