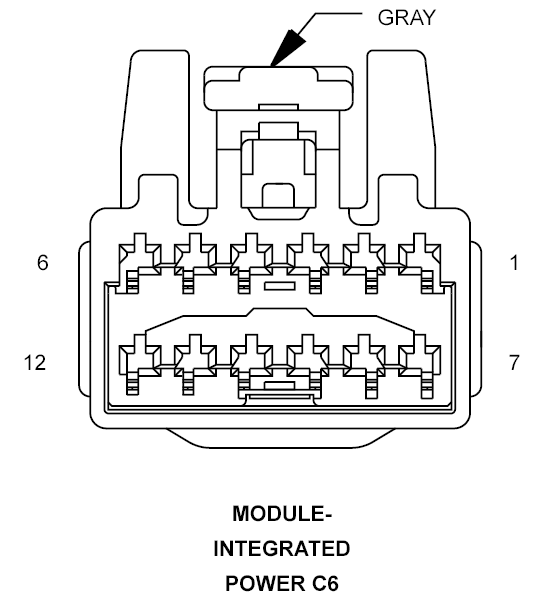

Integrated Power Module Connector End View (C6)
MODULE-INTEGRATED POWER C6 - GRAY 12-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
F202 20PK/GY |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 3 |
- |
- |
| 4 |
C13 20LB/OR |
A/C CLUTCH RELAY CONTROL |
| 5 |
- |
- |
| 6 |
K51 18BR/GY |
ASD RELAY CONTROL |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
F1 20PK/WT |
IGNITION UNLOCK-RUN-START |
| 10 |
- |
- |
| 11 |
- |
- |
| 12 |
- |
- |
