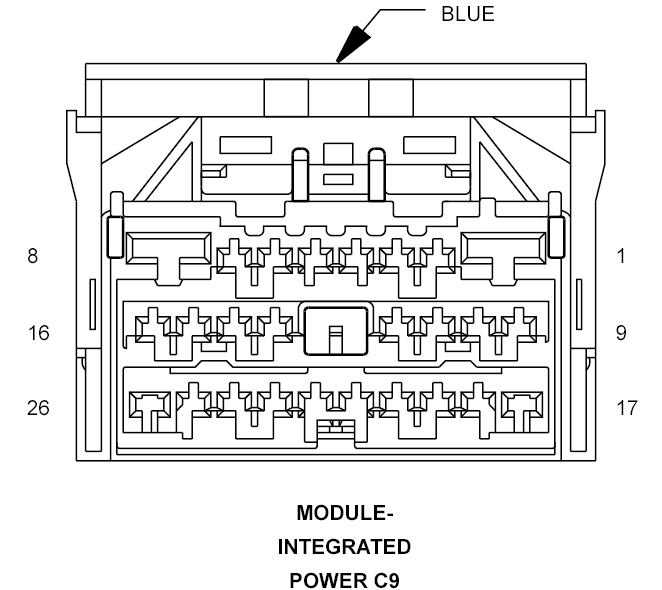

Integrated Power Module Connector End View (C9)
MODULE-INTEGRATED POWER C9 - BLUE 26-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A115 12YL/RD | FUSED B(+) |
| 2 | A106 20LB/RD | FUSED B(+) |
| 3 | A108 18LG/RD | FUSED B(+) |
| 4 | - | - |
| 5 | D123 20WT/BR | FLASH PROGRAM ENABLE |
| 6 | - | - |
| 7 | L71 20WT/GY | LEFT TAIL LAMP DRIVER |
| 8 | C7 12DB | FUSED FRONT BLOWER MOTOR RELAY OUTPUT |
| 9 | - | - |
| 10 | A701 18BR/RD | FUSED B(+) |
| 11 | - | - |
| 12 | - | - |
| 13 | F20 20PK/GY | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 14 | - | - |
| 15 | - | - |
| 16 | F201 20PK/LB | ORC RUN-START DRIVER |
| 17 | - | - |
| 18 | - | - |
| 19 | F2 18PK/YL | IGNITION SWITCH OUTPUT (RUN-START) |
| 20 | L51 18WT/DG | BRAKE LAMP SWITCH OUTPUT |
| 21 | - | - |
| 22 | - | - |
| 23 | L3 18WT/VT | LICENSE LAMP DRIVER |
| 24 | N1 16DB/OR | FUEL PUMP RELAY OUTPUT |
| 25 | A105 18DB/RD | FUSED B(+) |
| 26 | F525 16TN/PK | FUSED RUN RELAY OUTPUT (MIDDLE ROW HEATED SEATS) |
