Installation

INSTALLATION

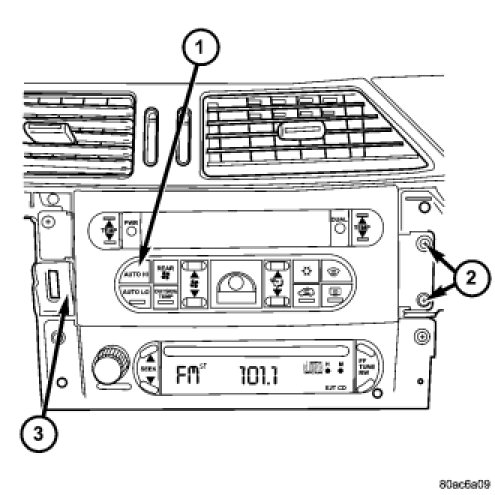

1. Position the A/C-heater control (1) to the instrument panel (3).

2. Connect the two wire harness connectors to the back of the A/C-heater control.

3. Install the A/C-heater control into the instrument panel.

4. Install the three screws (2) that secure the A/C-heater control to the instrument panel. Tighten the screws to 2 Nm (17 in. lbs.).

5. Install the center bezel onto the instrument panel.

6. Reconnect the negative battery cable.

7. Calibrate the A/C-heater control.
