Installation

INSTALLATION

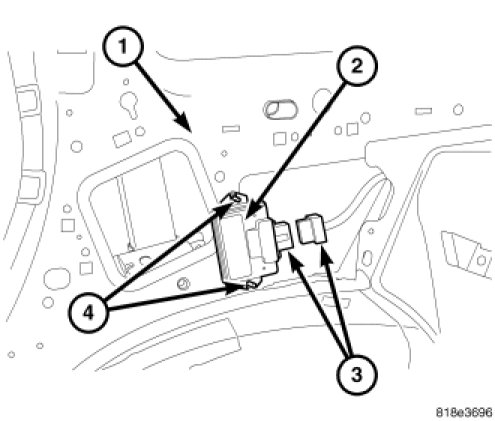

1. Install ECC module (2) into mounting studs.

2. Install mounting nuts (4) and tighten to 8 Nm (71 in. lbs.) torque.

3. Install the electrical connector (3).

4. Install the right rear trim panel.
