Sebring Base, 2.4 K
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Electronic Control Modules - Electrical Diagnostics
>>
DTC Troubleshooting
>>
*No Response From ECM (Engine Control Module) - Diesel
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

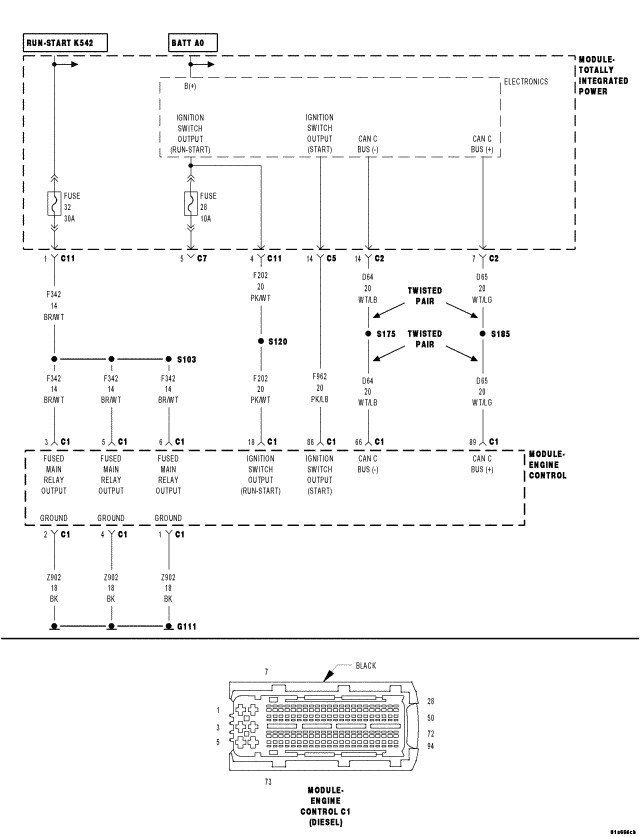

Fig 1: Engine Control Module Circuit Schematic
Courtesy of CHRYSLER LLC
