Module- Wiper - Front: Removal: Module-Wiper

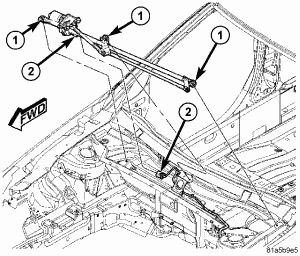

Fig 1: Removing/Installing Wiper Module
GC0059252Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative remote cable.
  2. Remove wiper arms and blades. See REMOVAL .
  3. Remove the cowl screen. Refer to REMOVAL .
  4. Remove the three wiper motor assembly mounting screws (1).
  5. Disconnect wire connector (2) at motor and remove assembly.
