Circuit Schematic

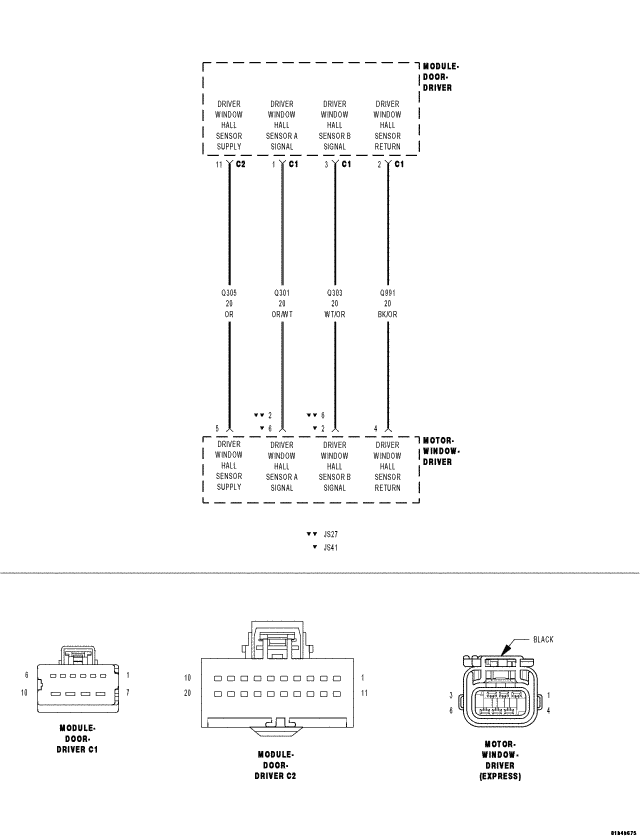

Fig 1: Driver Window Position Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
