Compass Module Connector End View

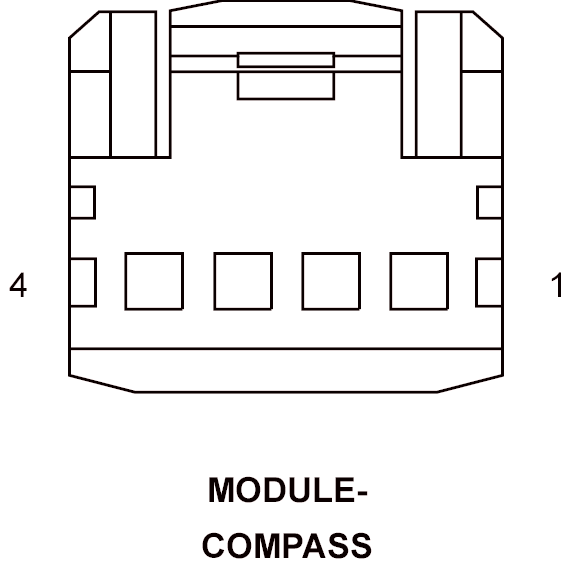

MODULE-COMPASS - 4-WAY

GJS780207Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 D506 20WT/DG LIN BUS
3 Z910 20BK GROUND
4 F929 20PK/DB FUSED IGNITION SWITCH OUTPUT (RUN)
