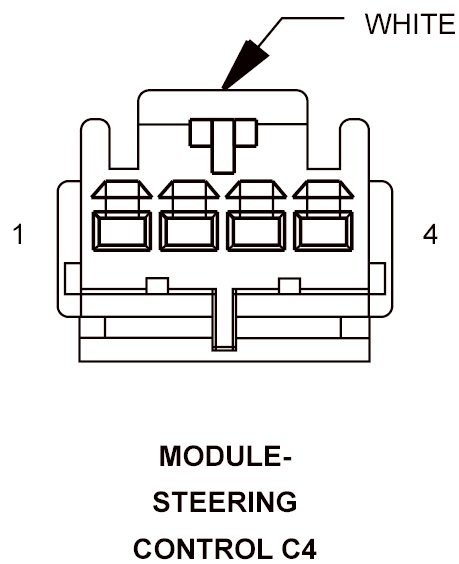

Steering Control Module Connector End View (C4)
MODULE-STEERING CONTROL C4 - WHITE 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R63 18LG/WT |
DRIVER SQUIB 2 LINE 1 |
| 2 |
R61 18LG/VT |
DRIVER SQUIB 2 LINE 2 |
| 3 |
R45 18LG/OR |
DRIVER SQUIB 1 LINE 1 |
| 4 |
R43 18LG/BR |
DRIVER SQUIB 1 LINE 2 |
