Sebring Base, 2.4 K
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
DTC U1418, Intermittent Condition, System Checks, Component Checks, Symptom Tests - GPEC
>>
*Checking The Charging System Operation
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

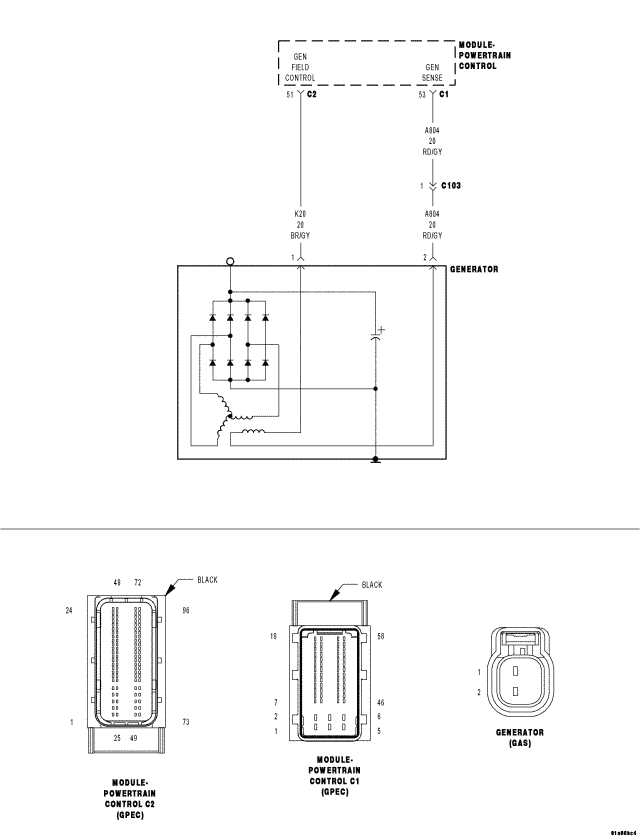

Fig 1: Charging System Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
