Circuit Schematic

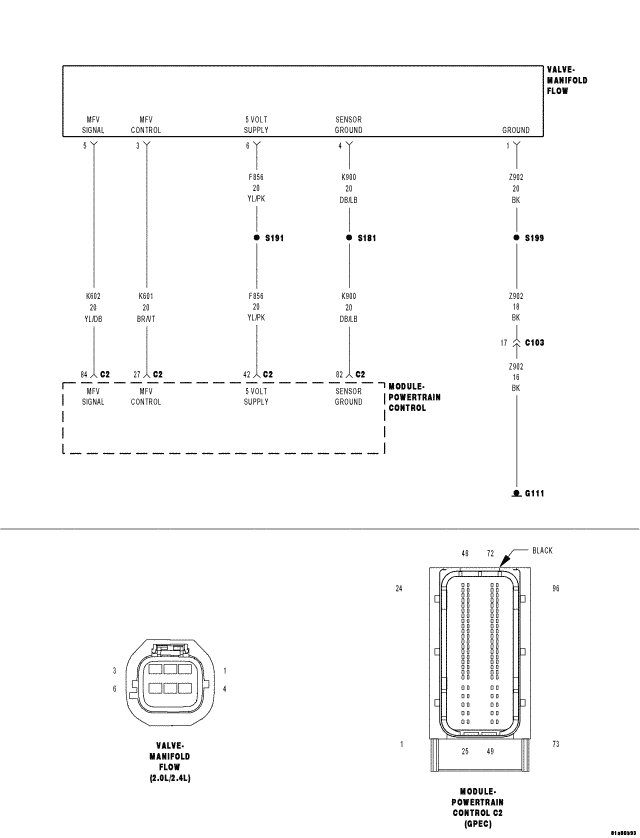

Fig 1: Manifold Flow Valve Position Sensor Circuit Schematic

GC0059370

Courtesy of CHRYSLER LLC
