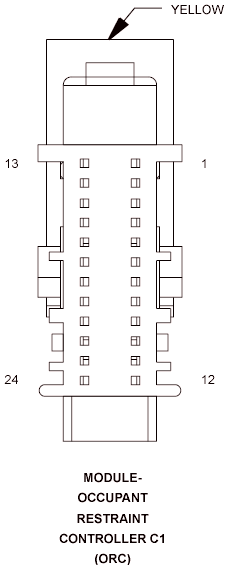

Occupant Restraint Controller Module (ORC) Connector End View (C1)
MODULE-OCCUPANT RESTRAINT CONTROLLER C1 (ORC) - YELLOW 24-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | D55 20WT/OR | CAN B BUS (+) |
| 4 | D54 20WT | CAN B BUS (-) |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | R81 20LB/WT | LEFT FRONT IMPACT SENSOR GROUND |
| 10 | R79 20LB/VT | LEFT FRONT IMPACT SENSOR SIGNAL |
| 11 | R82 20WT/LB | RIGHT FRONT IMPACT SENSOR GROUND |
| 12 | R80 20VT/LB | RIGHT FRONT IMPACT SENSOR SIGNAL |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | R43 18LG/BR | DRIVER SQUIB 1 LINE 2 |
| 18 | R45 18LG/OR | DRIVER SQUIB 1 LINE 1 |
| 19 | R44 18LB/OR | PASSENGER SQUIB 1 LINE 1 |
| 20 | R42 18LB/BR | PASSENGER SQUIB 1 LINE 2 |
| 21 | R61 18LG/VT | DRIVER SQUIB 2 LINE 2 |
| 22 | R63 18LG/WT | DRIVER SQUIB 2 LINE 1 |
| 23 | R64 18LB/WT | PASSENGER SQUIB 2 LINE 1 |
| 24 | R62 18LB/VT | PASSENGER SQUIB 2 LINE 2 |
