Installation-Pressure System

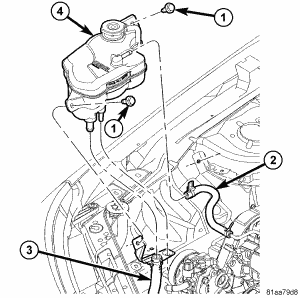

Fig 1: View Of Coolant Recovery Container - Pressure System
GC0058752Courtesy of CHRYSLER LLC
  1. Connect hose (3) to coolant recovery container (4).
  2. Install coolant recovery container (4) in mounting position and install mounting bolts (1) Tighten bolts to 10 N.m (89 in. lbs.).
  3. Connect return hose (2) to the coolant recovery container (4).
  4. Fill cooling system. See STANDARD PROCEDURE .
