Input Speed Sensor

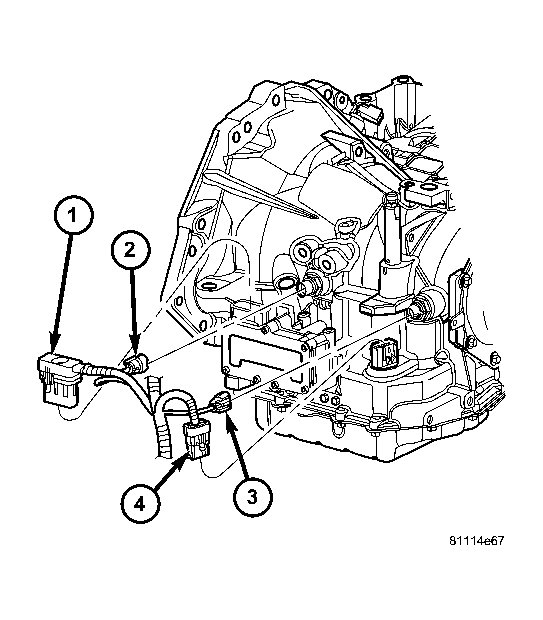

Fig 1: Identifying Transmission Connectors

GC0000554

Courtesy of CHRYSLER LLC

1 - SOLENOID PACK CONNECTOR

2 - INPUT SPEED SENSOR CONNECTOR

3 - OUTPUT SPEED SENSOR CONNECTOR

4 - TRANSMISSION RANGE SENSOR CONNECTOR

Disconnect battery negative cable.
Disconnect input speed sensor connector (2). See Fig 1.

Fig 2: Identifying Input Speed Sensor Location
Courtesy of CHRYSLER LLC

1 - INPUT SPEED SENSOR
Unscrew and remove input speed sensor (1). See Fig 2.

Fig 3: Identifying O-Ring Location
Courtesy of CHRYSLER LLC

1 - INPUT SPEED SENSOR

2 - O-RING
Inspect speed sensor O-ring (2) and replace if necessary. See Fig 3.
