Circuit Schematic

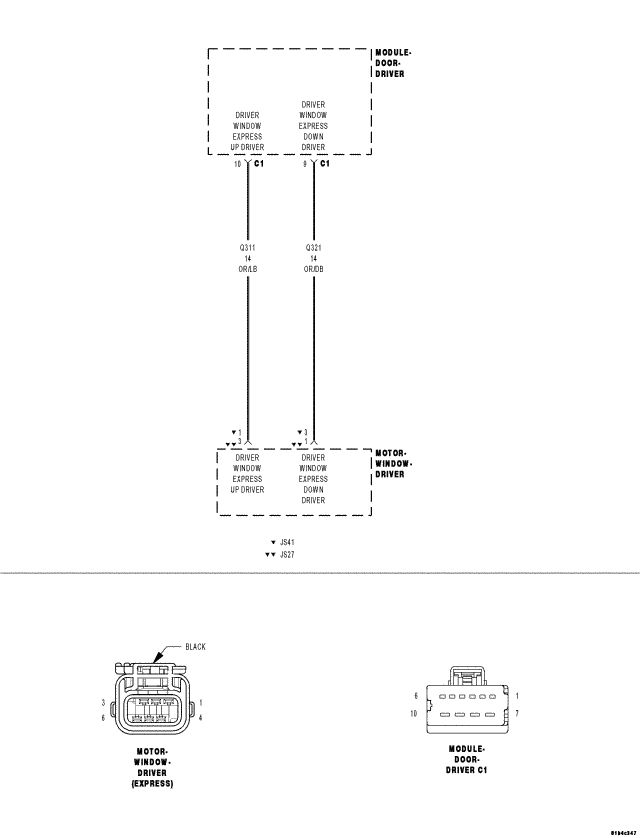

Fig 1: Driver Window Control Circuit Schematic

GC0059102

Courtesy of CHRYSLER LLC
