DTCS P2118 To P2305 - GPEC
>>
P2123-Accelerator Pedal Position Sensor 1 Circuit High
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

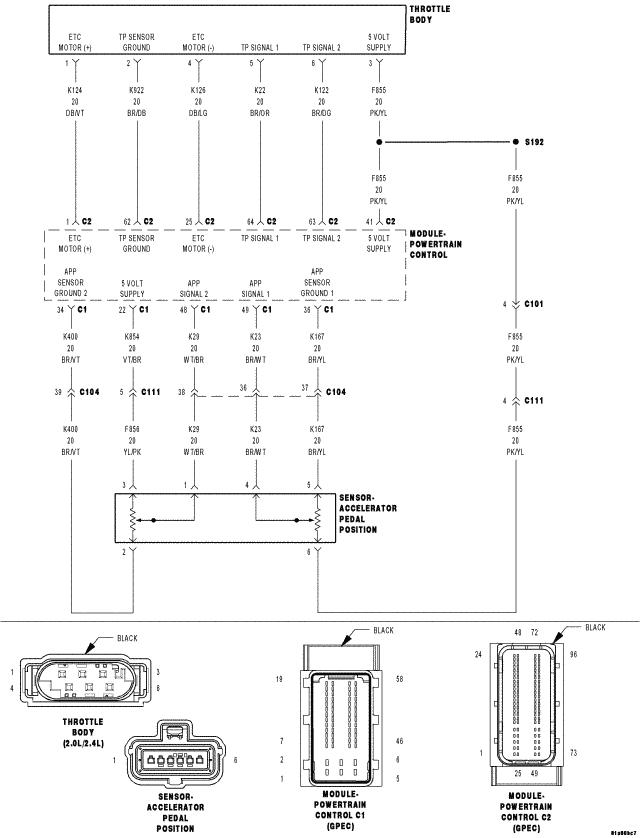

Fig 1: Accelerator Pedal Position Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
