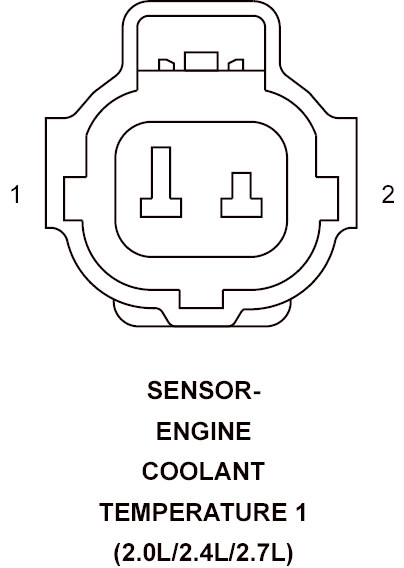

Engine Coolant Temperature Sensor 1 (2.0L/2.4L/2.7L) Connector End View
SENSOR-ENGINE COOLANT TEMPERATURE 1 - 2-WAY (2.0L/2.4L/2.7L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K900 20DB/LB |
SENSOR GROUND |
| 2 |
K2 20VT/OR |
ECT 1 SIGNAL |
