Heated Glass Element

Component ID: 23
Component : BACKLITE-ELECTRIC HEATED

Connector:
Name : BACKLITE-ELECTRIC HEATED
Color :
# of pins : 1
Qualifier : (GROUND)




Pin Description Circuit
1 GROUND Z917 12BK

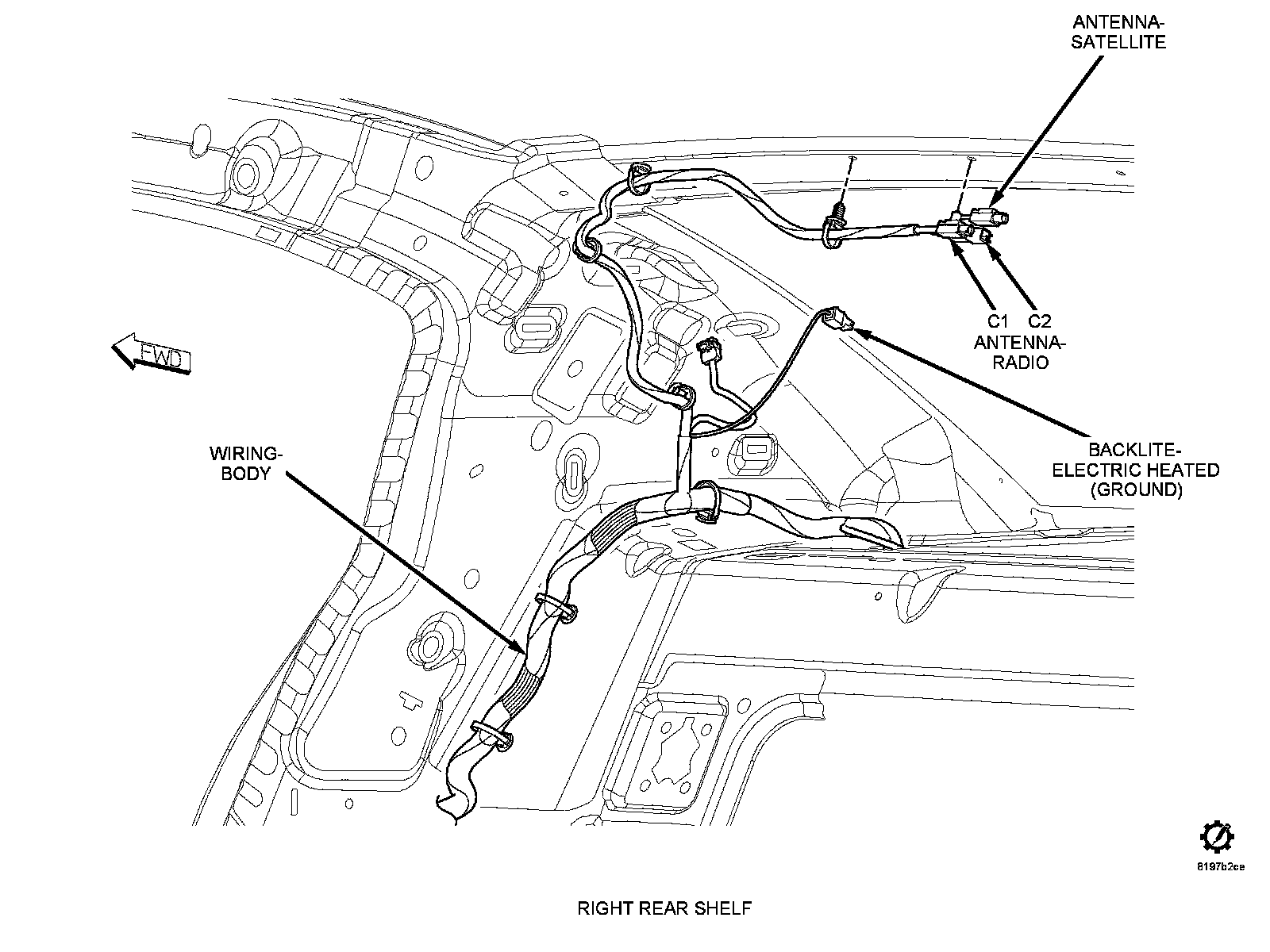

Component Location - 65




Component Location - 68






Connector:
Name : BACKLITE-ELECTRIC HEATED
Color :
# of pins : 1
Qualifier : (POWER)




Pin Description Circuit
1 REAR WINDOW DEFOGGER CONTROL OUTPUT C515 12LB/OR

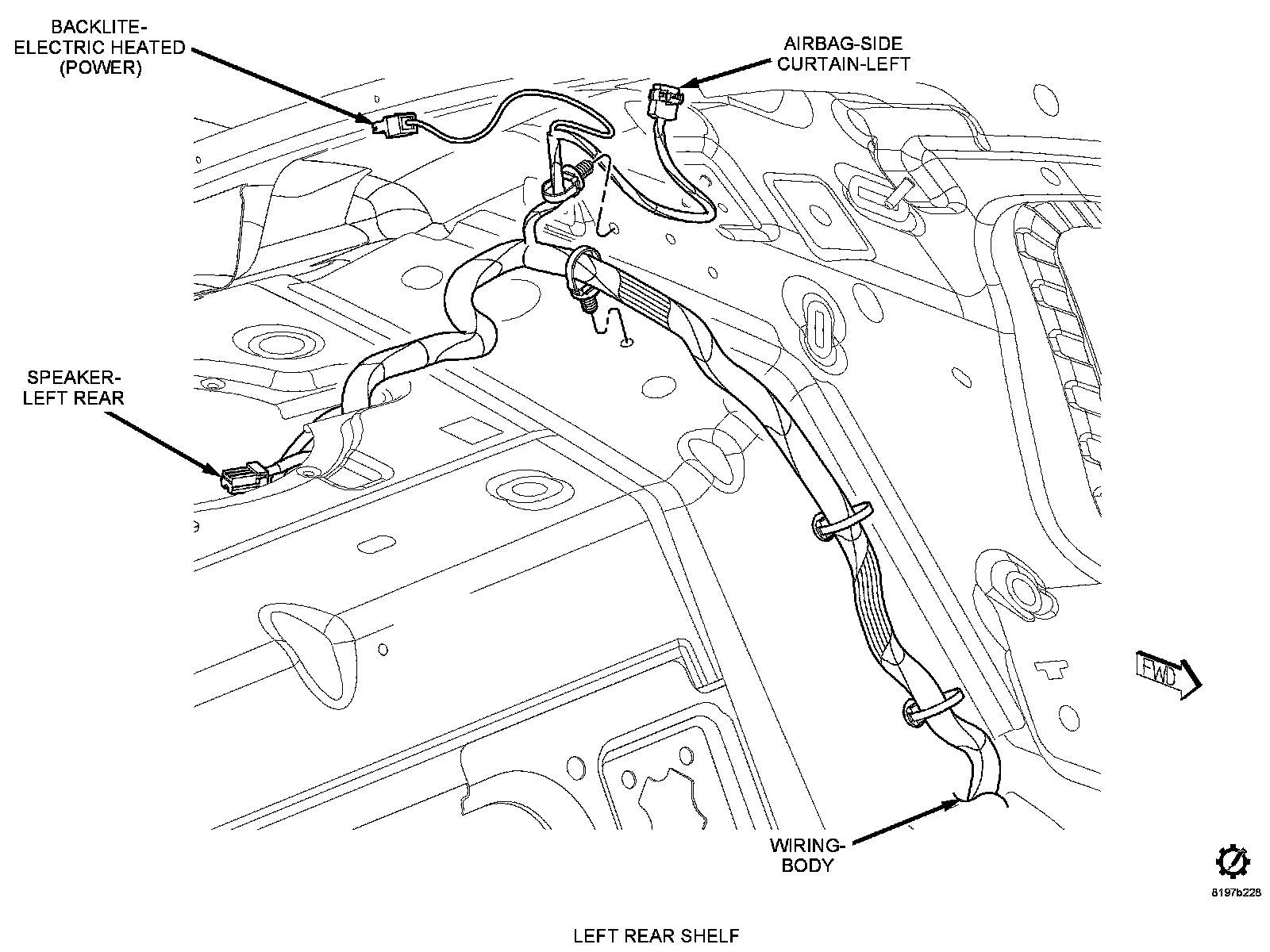

Component Location - 65




Component Location - 68
