Installation

INSTALLATION

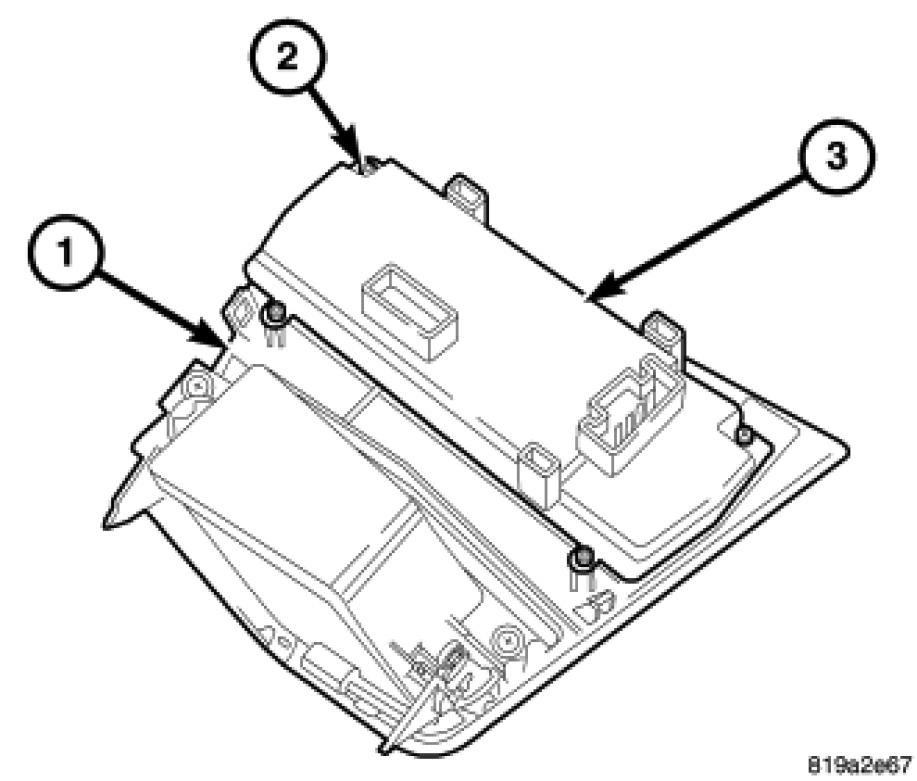

1. Position the A/C-heater control (3) onto the back of the console bezel (1).

2. Install the four screws (2) that secure the A/C-heater control to the console bezel. Tighten the screws to 2 Nm (17 in. lbs.).

3. Install the console bezel.

4. Reconnect the negative battery cable.

NOTE: The A/C-heater control will automatically perform the Actuator Calibration function when the ignition is initially turned on when installing a new control or when reinstalling the original control. However, the Actuator Calibration function must be manually initiated using a scan tool if the A/C-heater control has been previously installed in another vehicle.

5. If required, initiate the Actuator Calibration function using a scan tool.
