Removal

LAMP UNIT





1. Disconnect and isolate the battery negative cable.

2. Loosen or remove the front lower fascia closeout enough to gain access to the fog lamp.

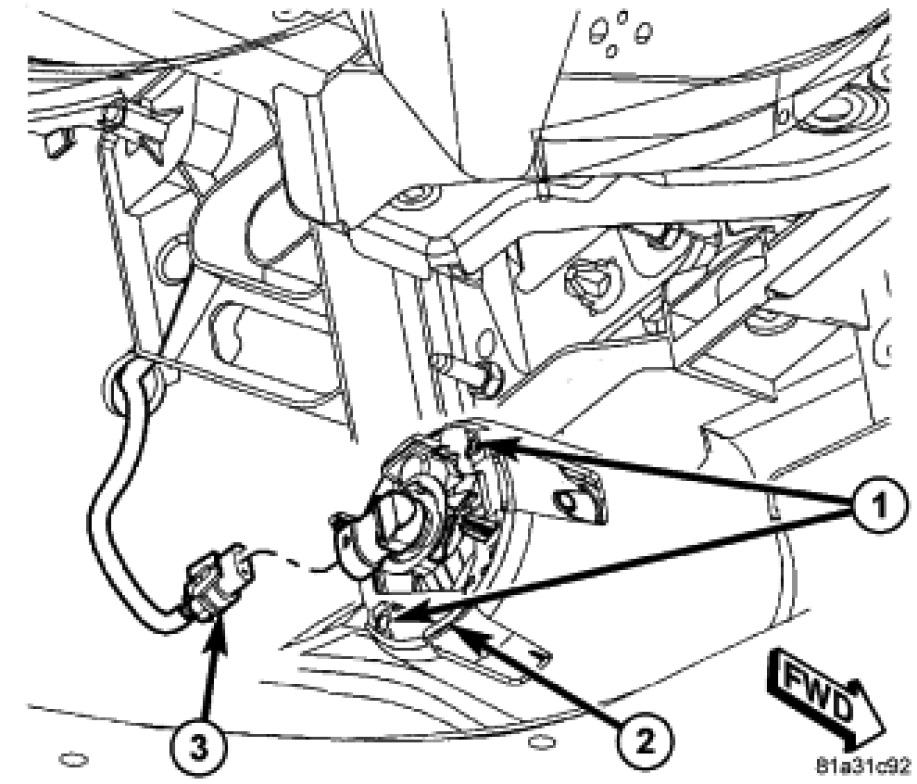

3. Remove the two screws (1) attaching fog lamp (2) to front bumper fascia.

4. Remove fog lamp (2) from fascia.

5. Disconnect wire connector (3) from fog lamp bulb.

6. Remove fog lamp (2) from vehicle.
