Sensor-Engine Coolant Temperature 1

Component ID: 347
Component : SENSOR-ENGINE COOLANT TEMPERATURE 1

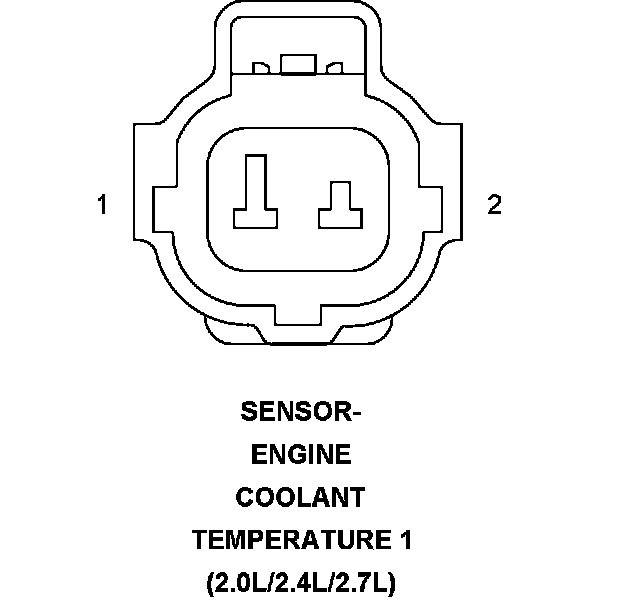

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE 1
Color :
# of pins : 2
Qualifier : (2.0L/2.4L/2.7L)




Pin Description Circuit
1 SENSOR GROUND K900 20DB/LB
2 ECT 1 SIGNAL K2 20VT/OR

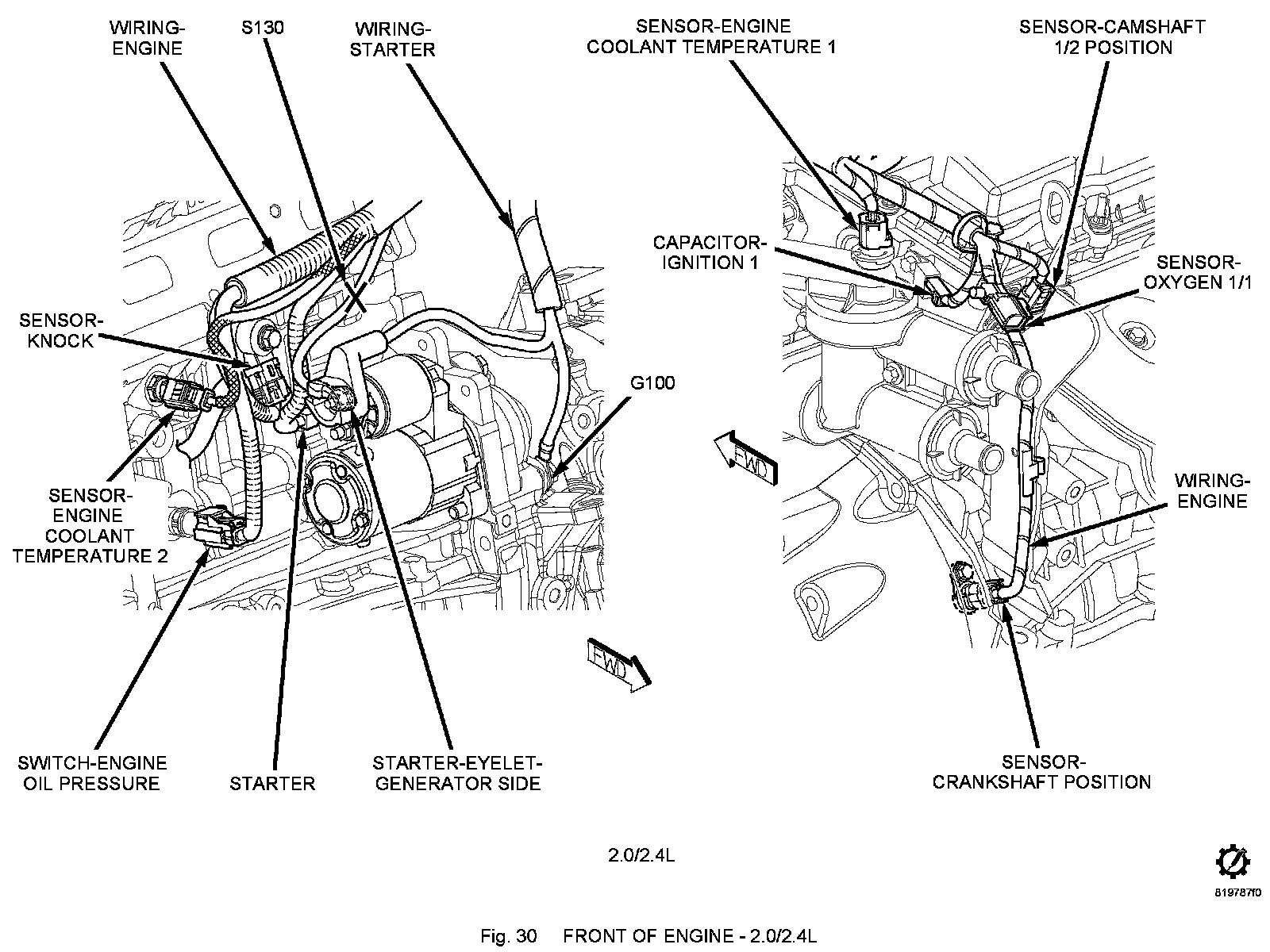

Component Location - 29




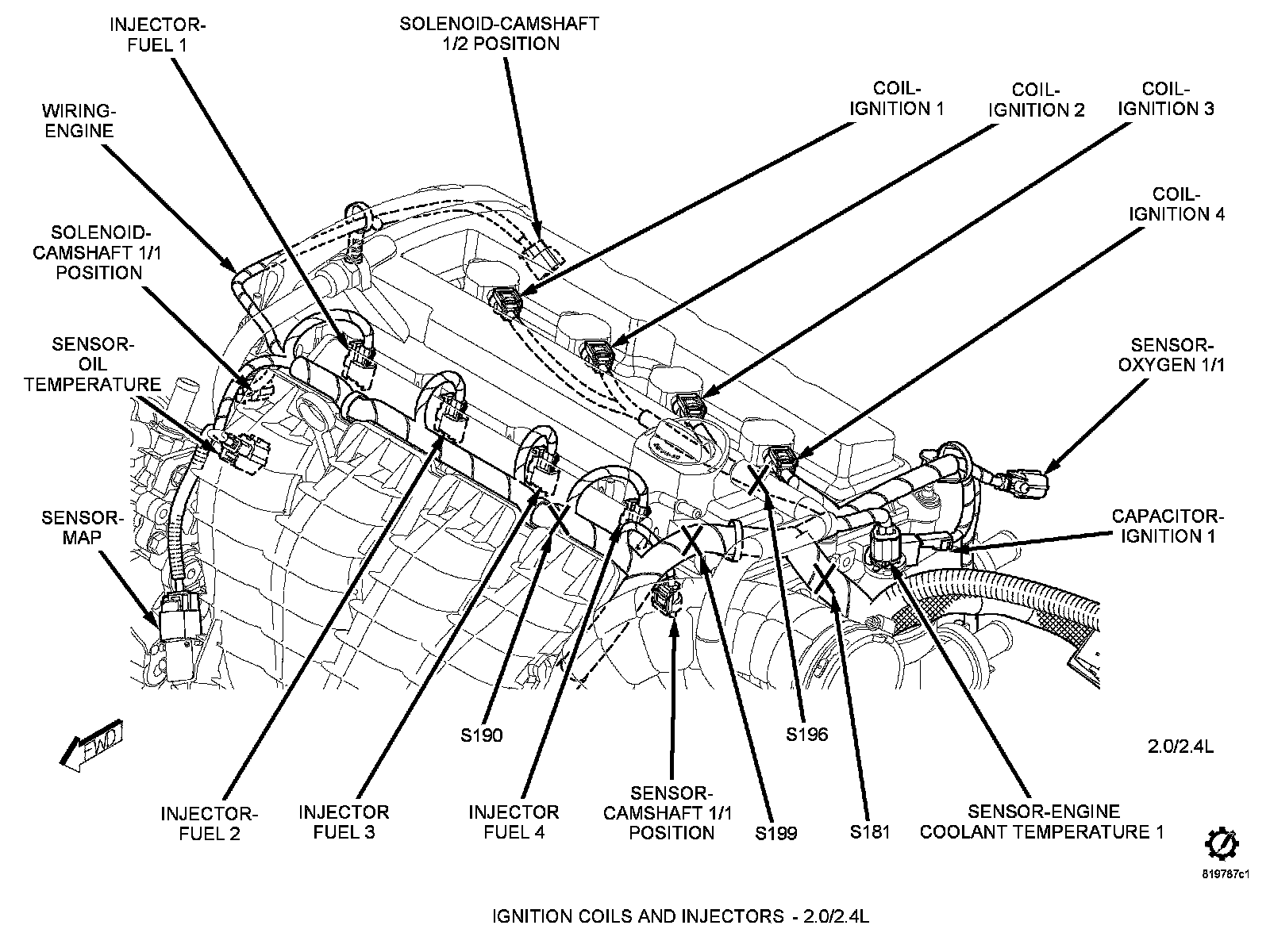

Component Location - 30

Fig. 30:
