Sensor-Engine Coolant Temperature 2

Component ID: 348

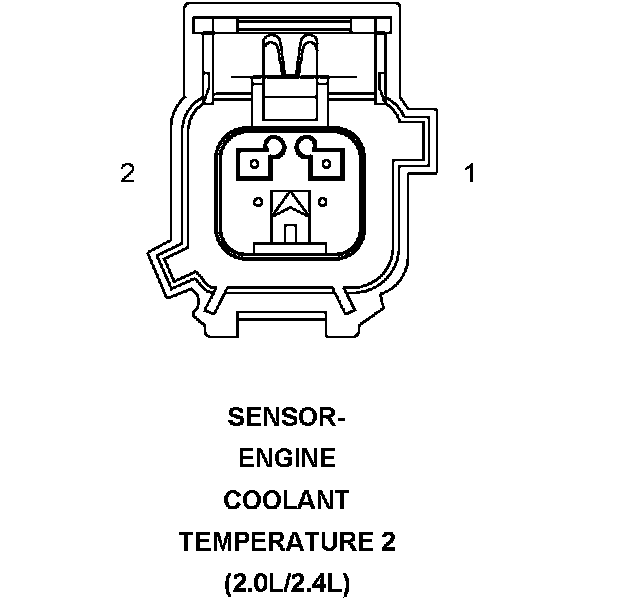

Component : SENSOR-ENGINE COOLANT TEMPERATURE 2

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE 2
Color :
# of pins : 2
Qualifier : (2.0L/2.4L)




Pin Description Circuit
1 SENSOR GROUND K915 20BR/PK
2 ECT 2 SIGNAL K222 20BR/BK

Component Location - 30

Fig. 30:
