Sensor-Engine Coolant Temperature

Component ID: 346
Component : SENSOR-ENGINE COOLANT TEMPERATURE

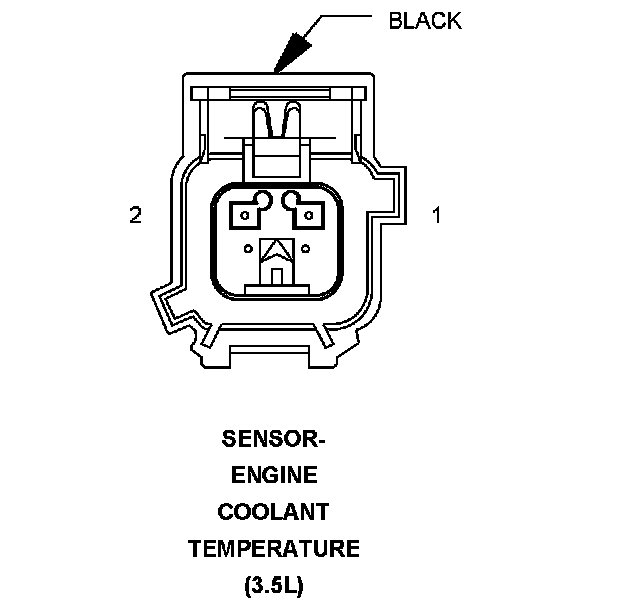

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (3.5L)




Pin Description Circuit
1 SENSOR GROUND K900 20DB/LB
2 ECT SIGNAL K2 20VT/OR

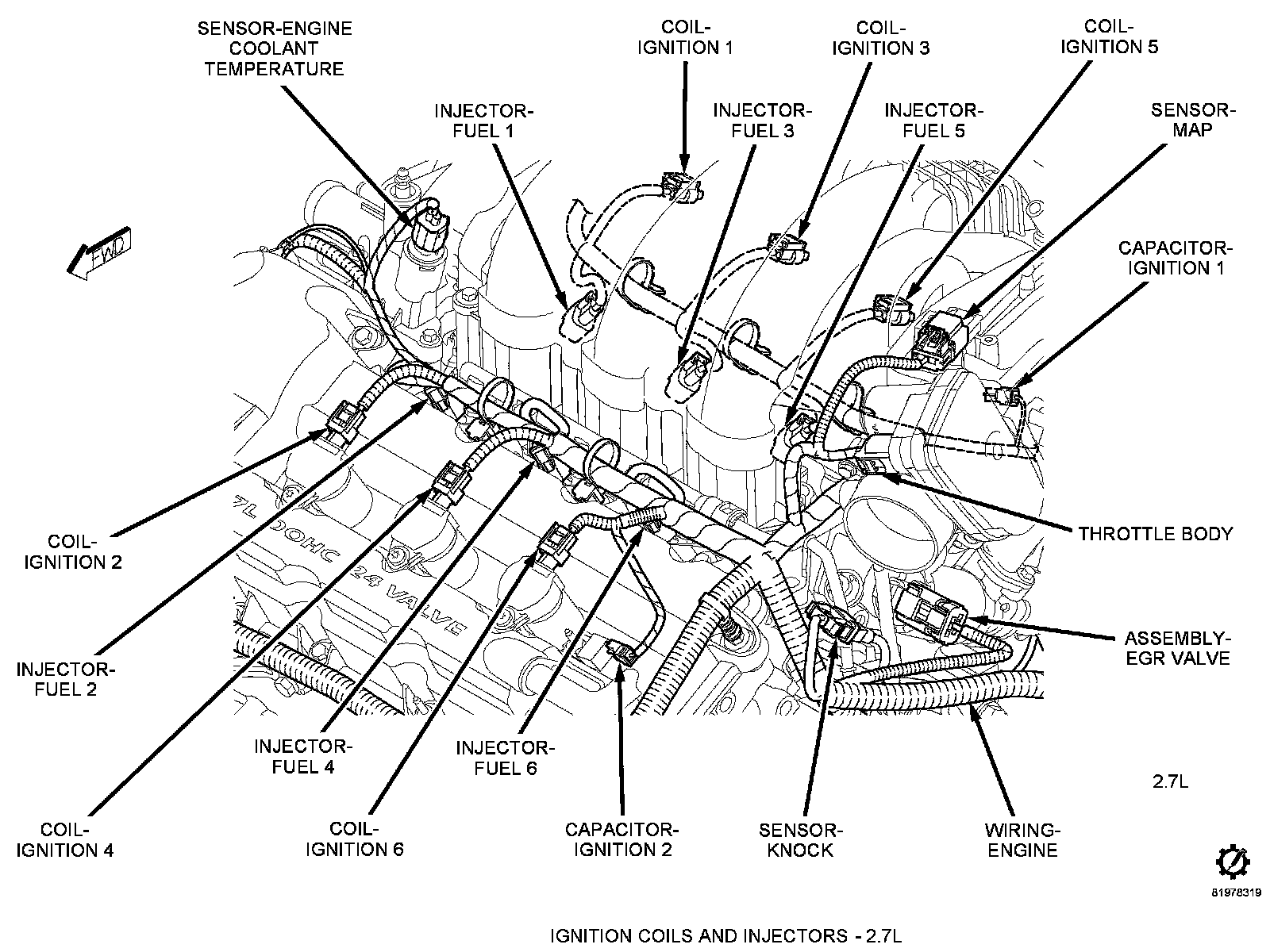

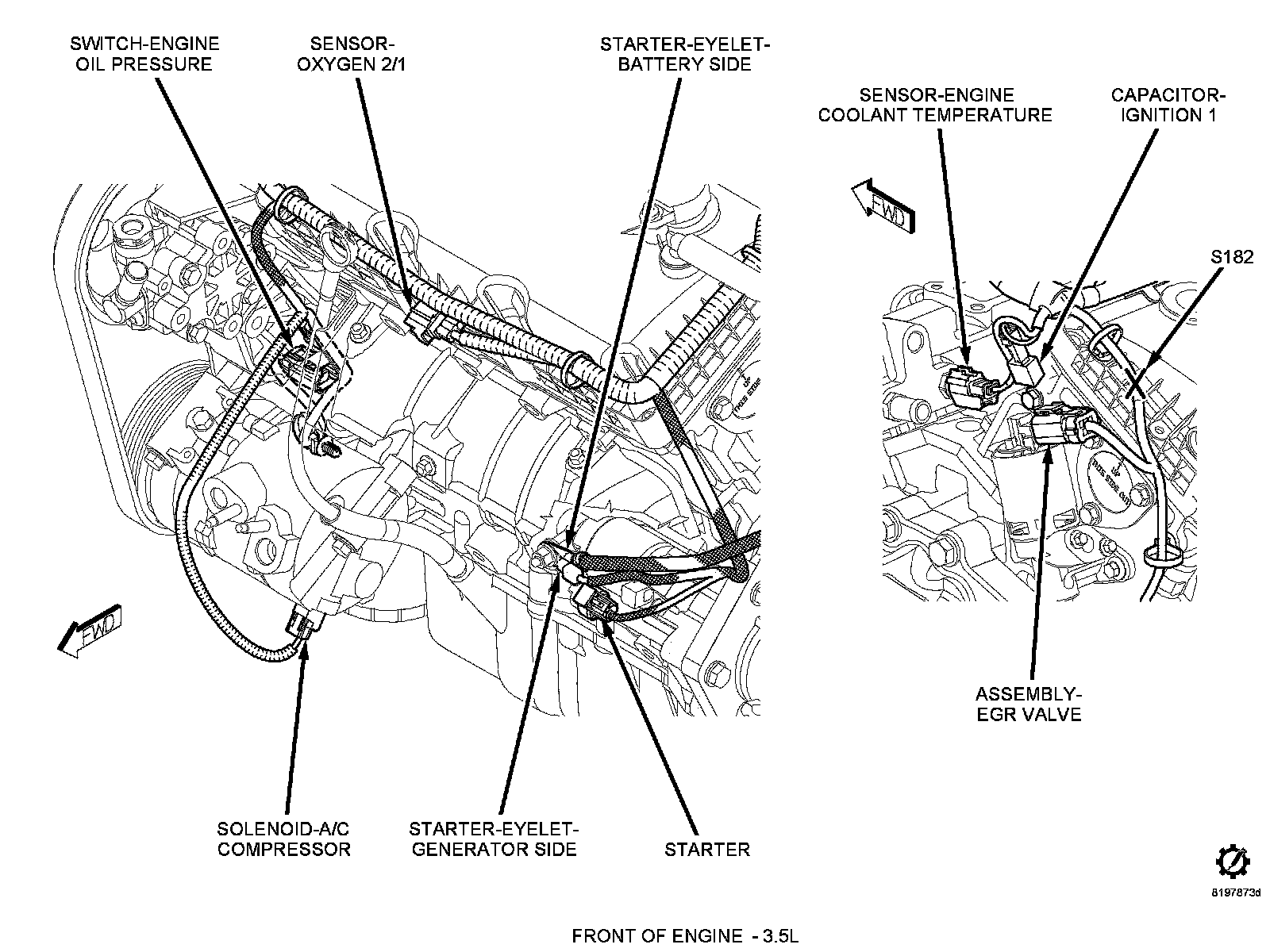

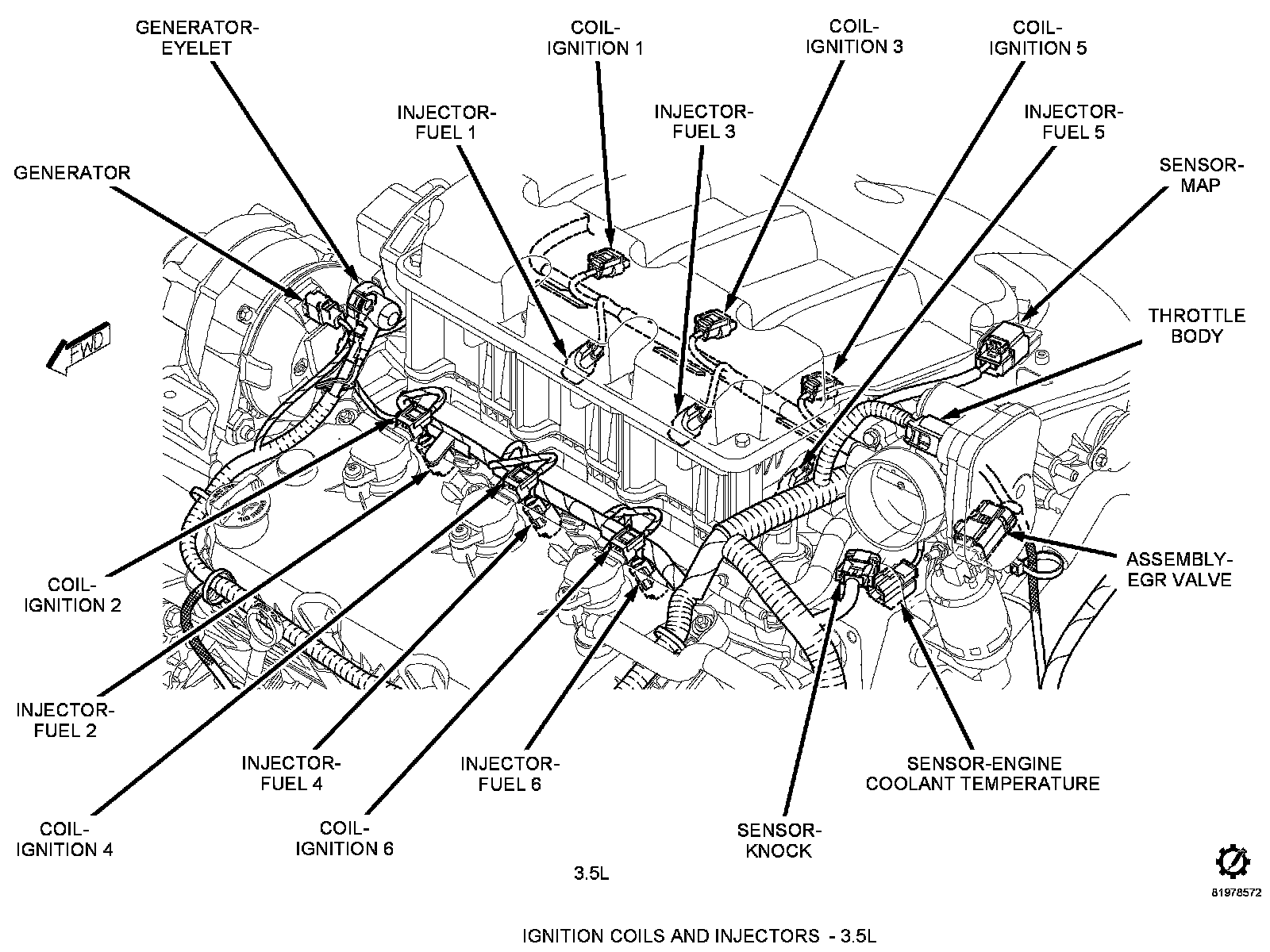

Component Location - 21




Component Location - 25




Component Location - 26




Component Location - 32

Fig. 32:

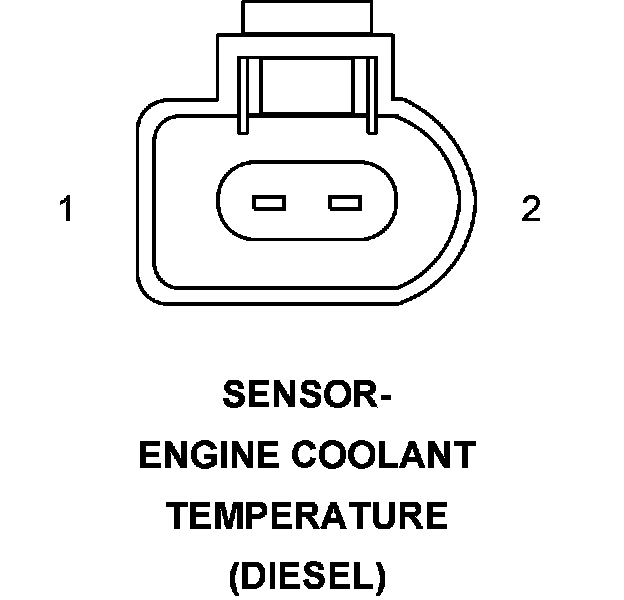

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color :
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 ECT SIGNAL K2 20VT/OR
2 SENSOR GROUND K915 20BR/WT

Component Location - 21




Component Location - 25




Component Location - 26




Component Location - 32

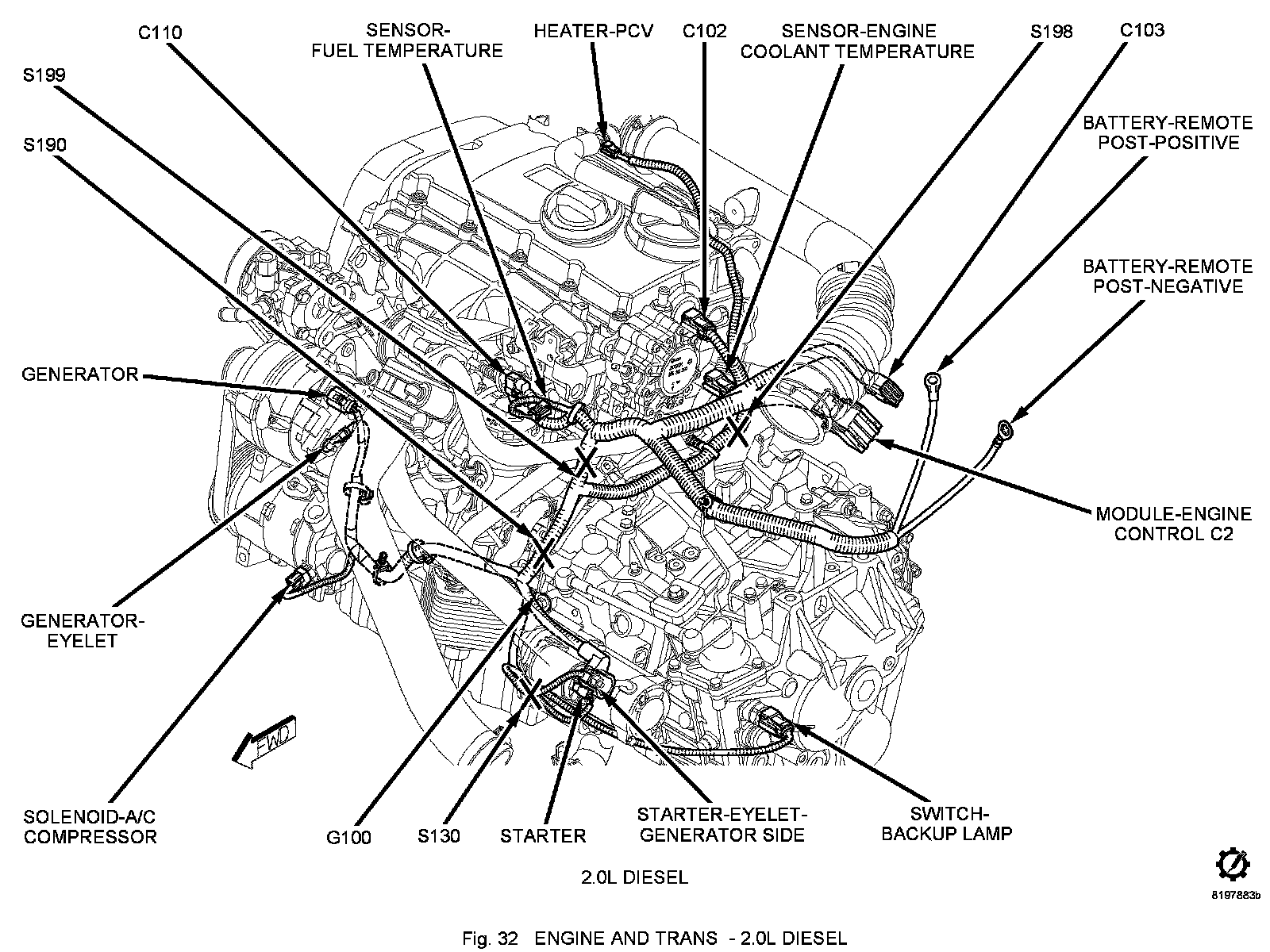

Fig. 32:
