Knock Sensor: Locations

Component ID: 357
Component : SENSOR-KNOCK

Connector:

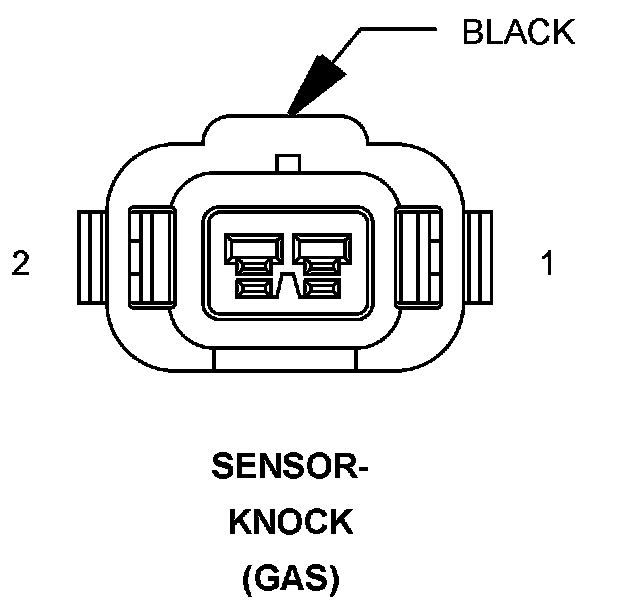

Name : SENSOR-KNOCK
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 KS SIGNAL K42 20DB/YL
2 KS RETURN K942 20WT/BR

Component Location - 21




Component Location - 25




Component Location - 30

Fig. 30:
