System Specifications

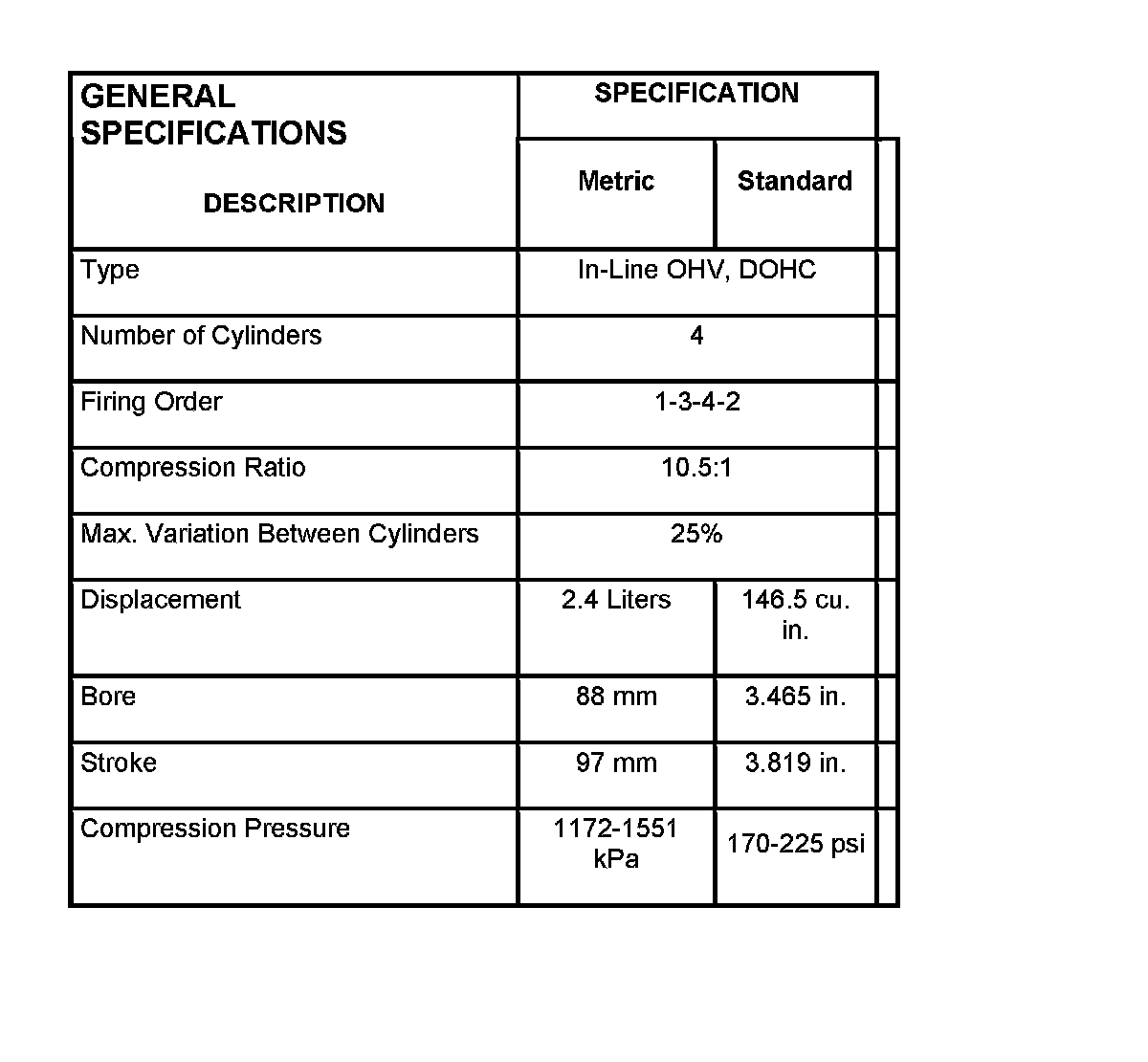

General Specifications:

General Specifications

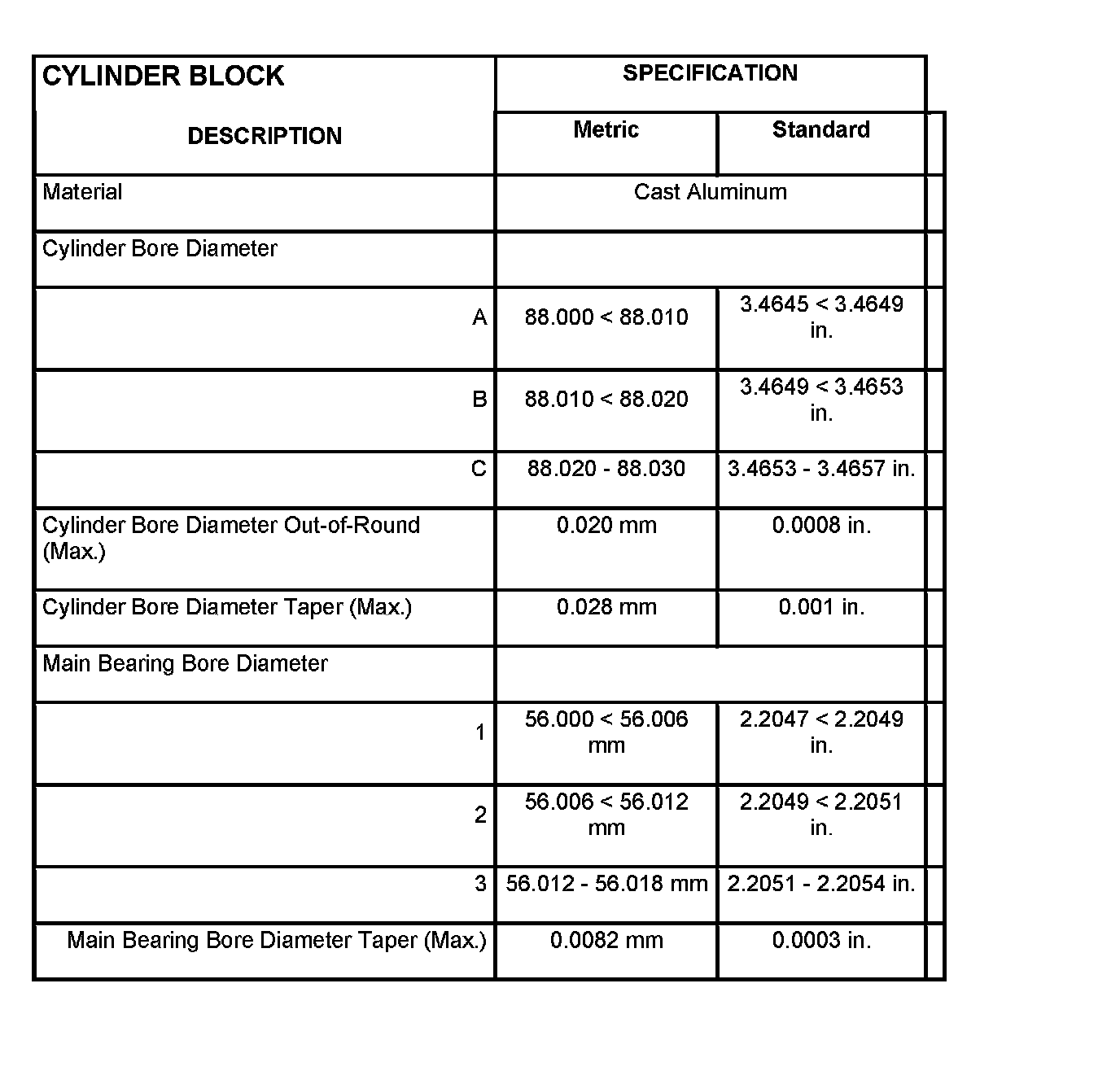

Cylinder Block:

Cylinder Block

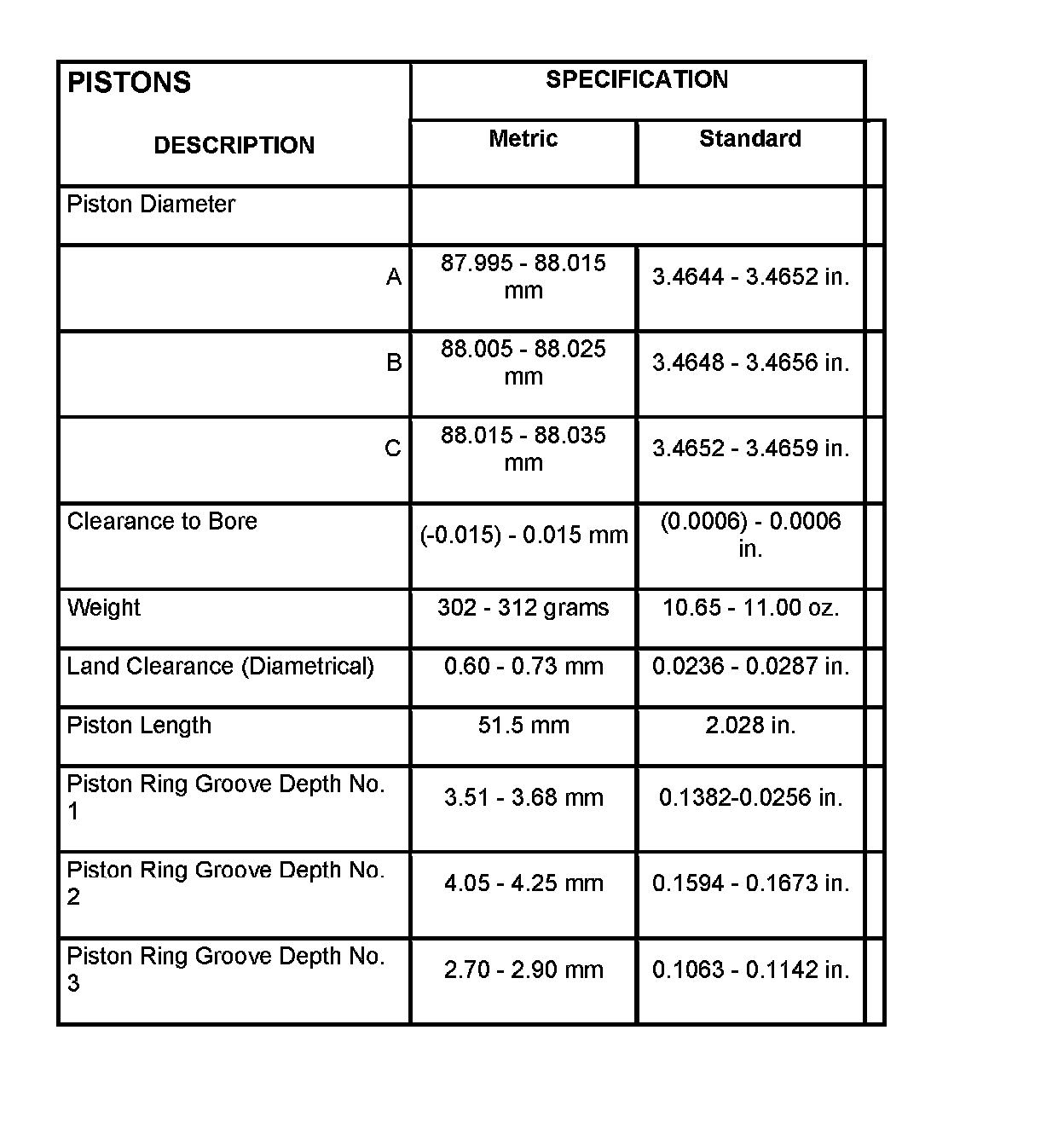

Pistons:

Pistons

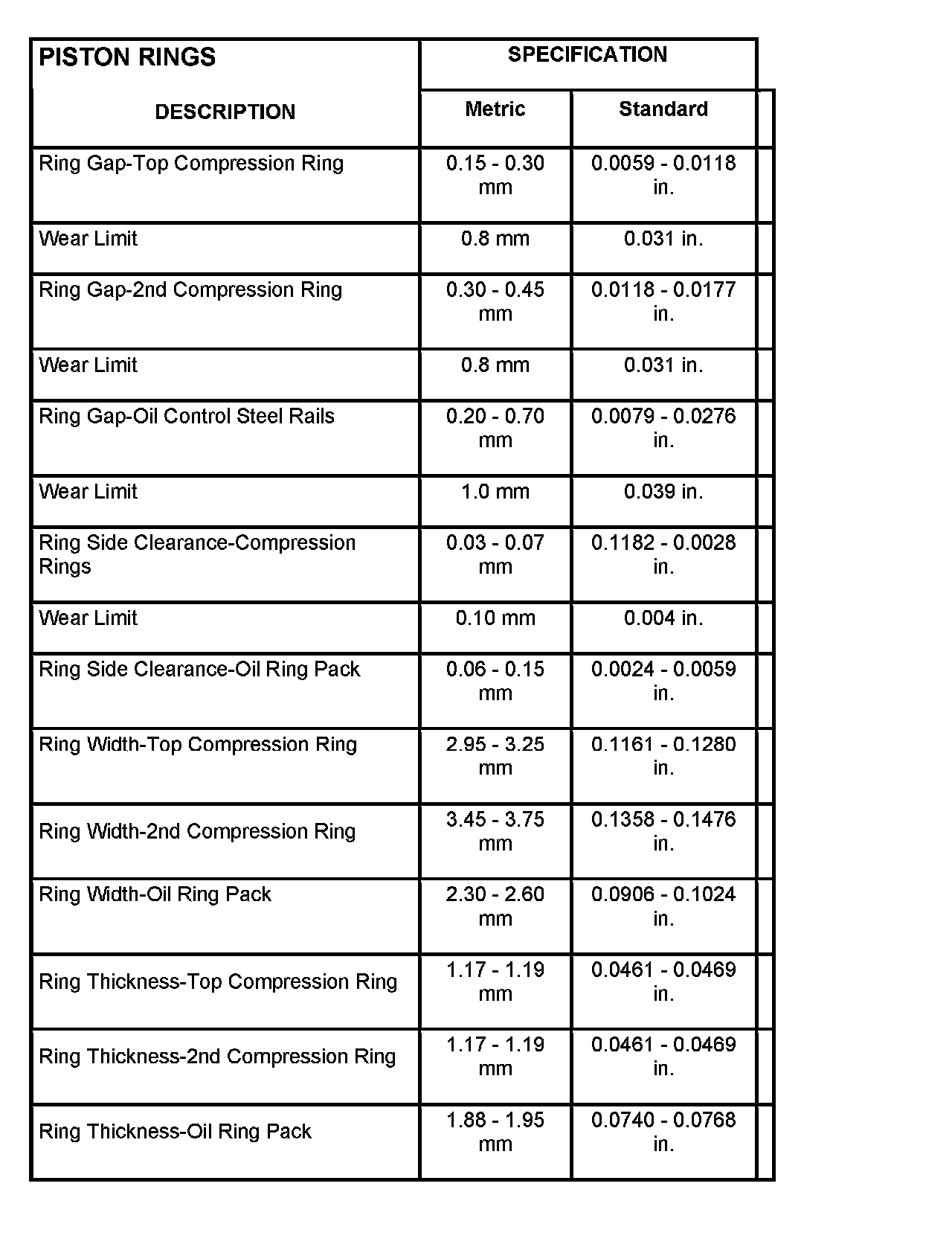

Piston Rings:

Piston Rings

Connecting Rod:

Connecting Rod

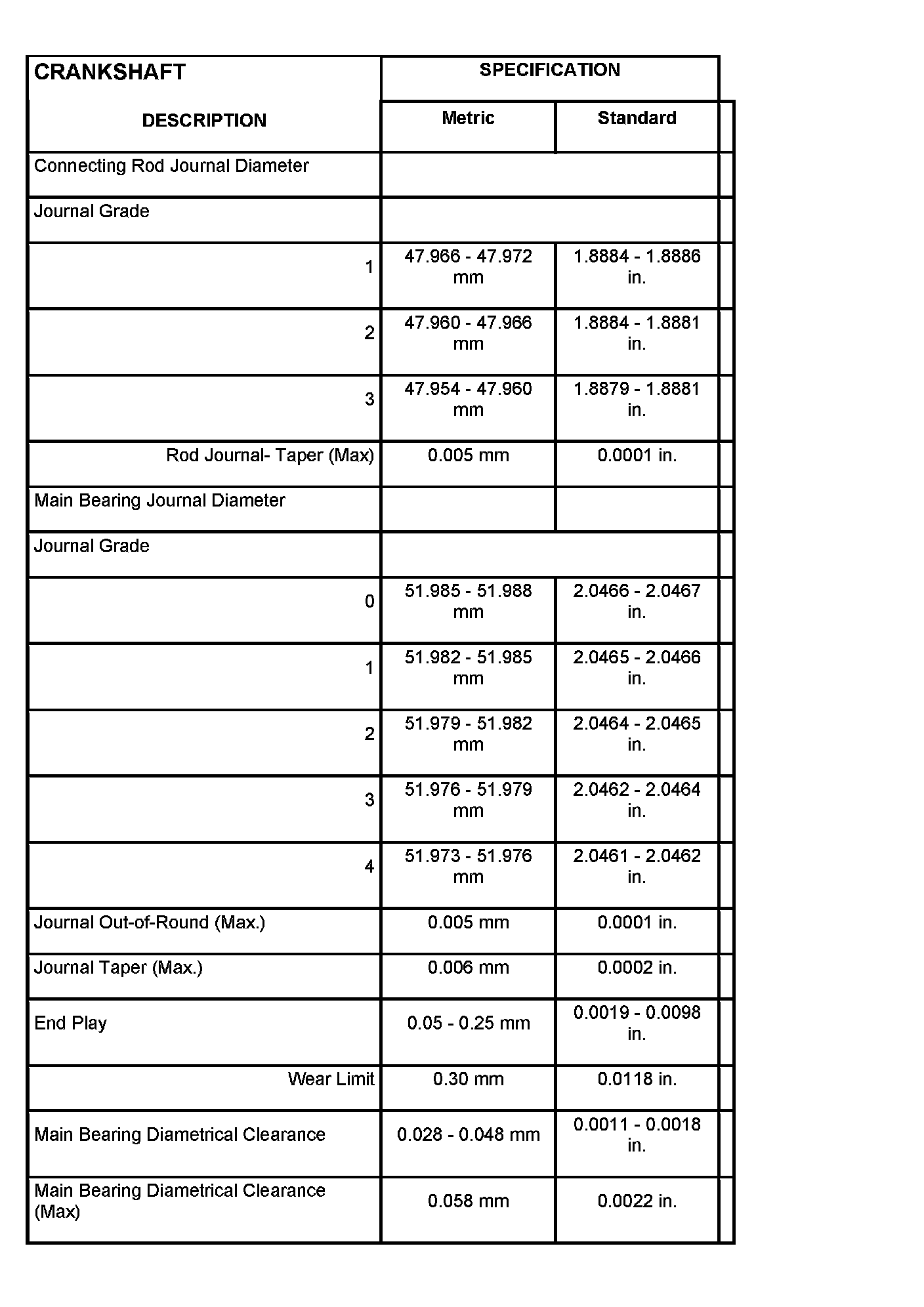

Crankshaft:

Crankshaft

Connecting Rod Cap-Bolts 20 Nm +90� (15 ft.lbs.) +90�

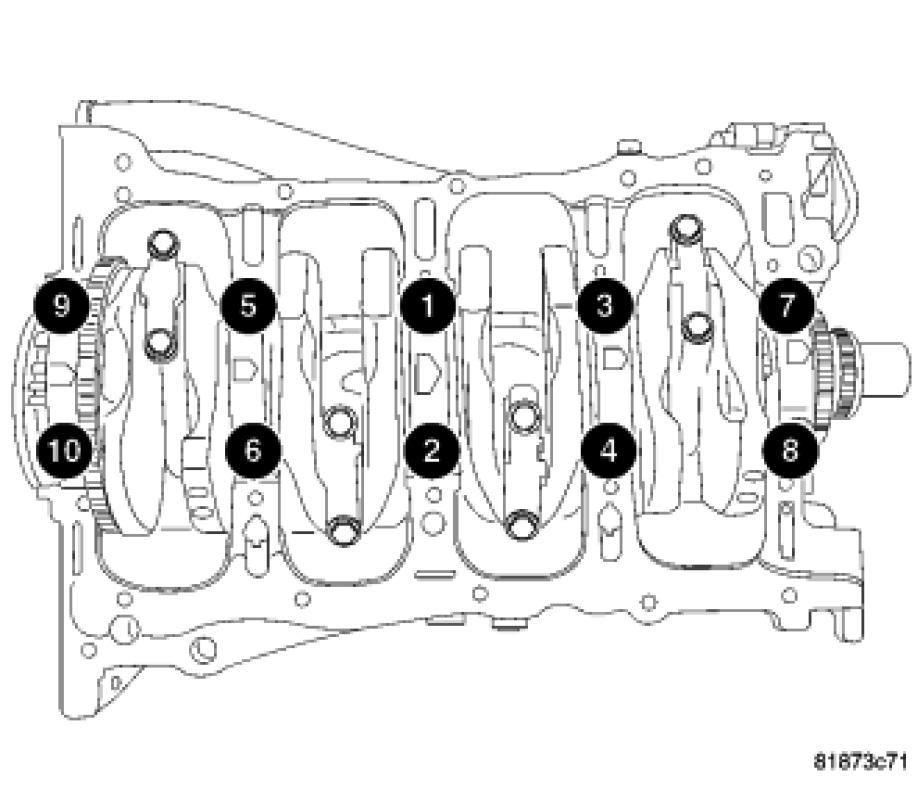

Crankshaft Main Bearing Caps-Bolts

Tighten bolts using a three step method, in the sequence shown.
Tighten bolts to 15 Nm (11 ft. lbs.)
Tighten bolts to 27 Nm (20 ft. lbs.)
Rotate an additional 45�

Tighten bolts using a three step method, in the sequence shown.
Tighten bolts to 15 Nm (11 ft. lbs.)
Tighten bolts to 45 Nm (33 ft. lbs.)
Rotate an additional 45�

Crankshaft Damper-Bolt 210 Nm (155 ft. lbs.)
