Service Specifications
2.4L ENGINE
General Specifications:
General Specifications
Cylinder Block:
Cylinder Block
Pistons:
Pistons
Piston Rings:
Piston Rings
Connecting Rod:
Connecting Rod
Crankshaft:
Crankshaft

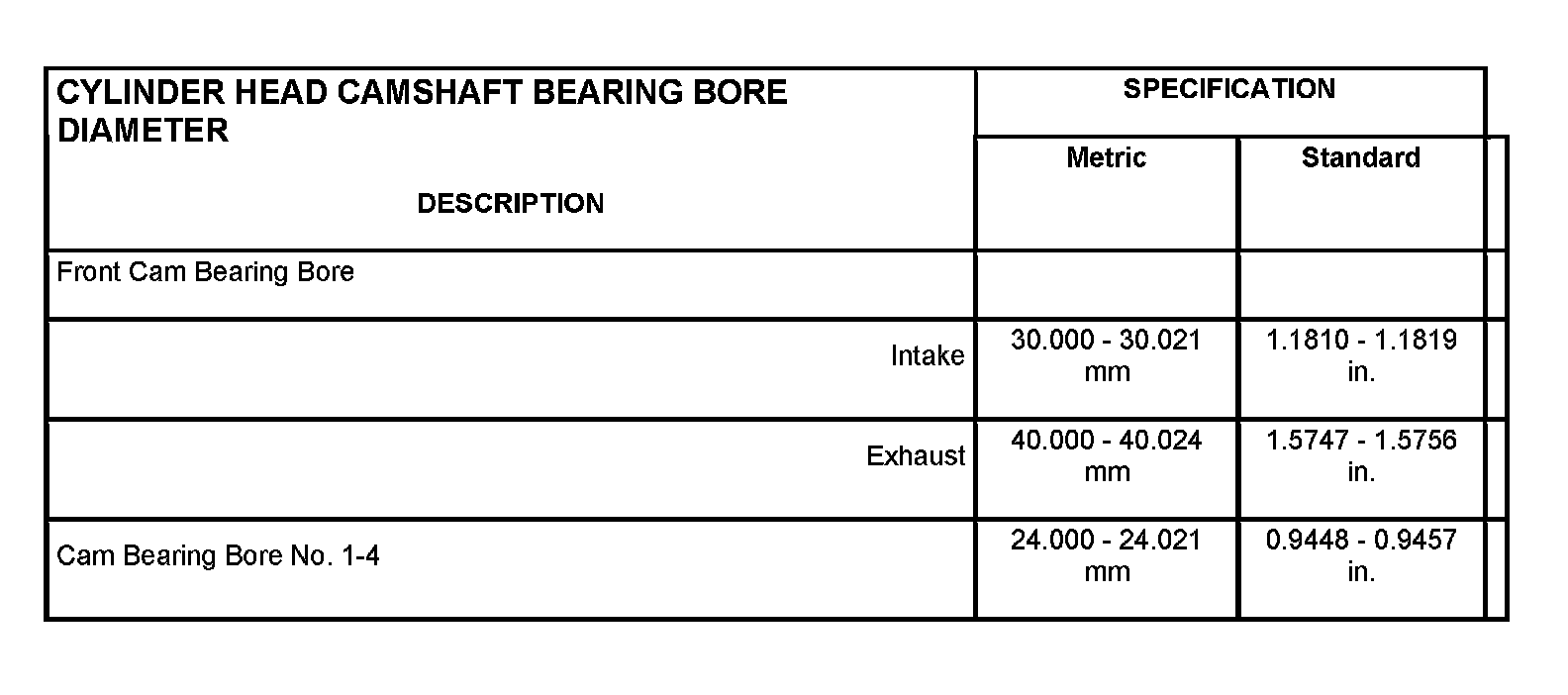

Cylinder Head Camshaft Bearing Bore Diameter:
Cylinder Head Camshaft Bearing Bore Diameter

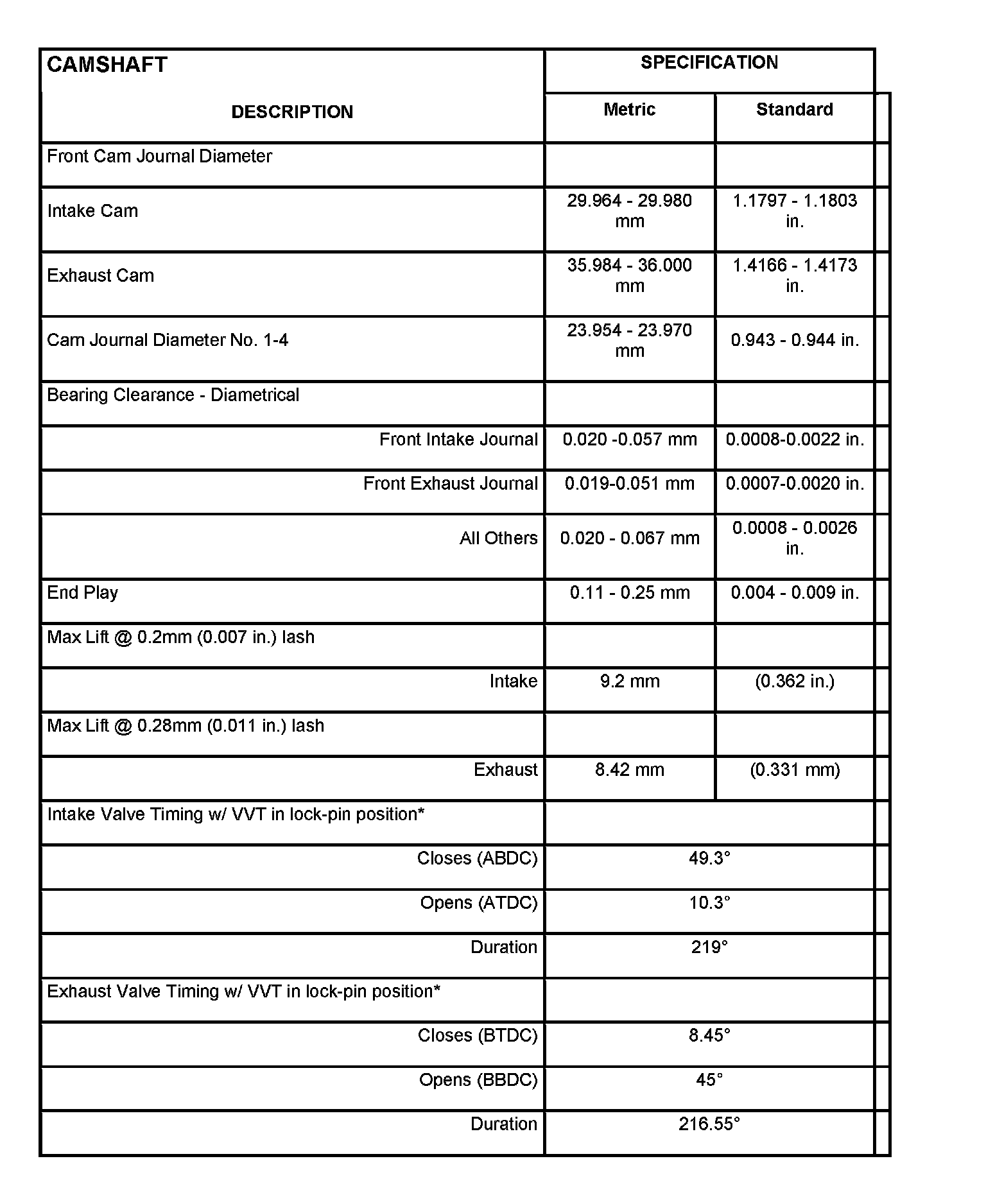

Camshaft (Part 1):
Camshaft (Part 1)

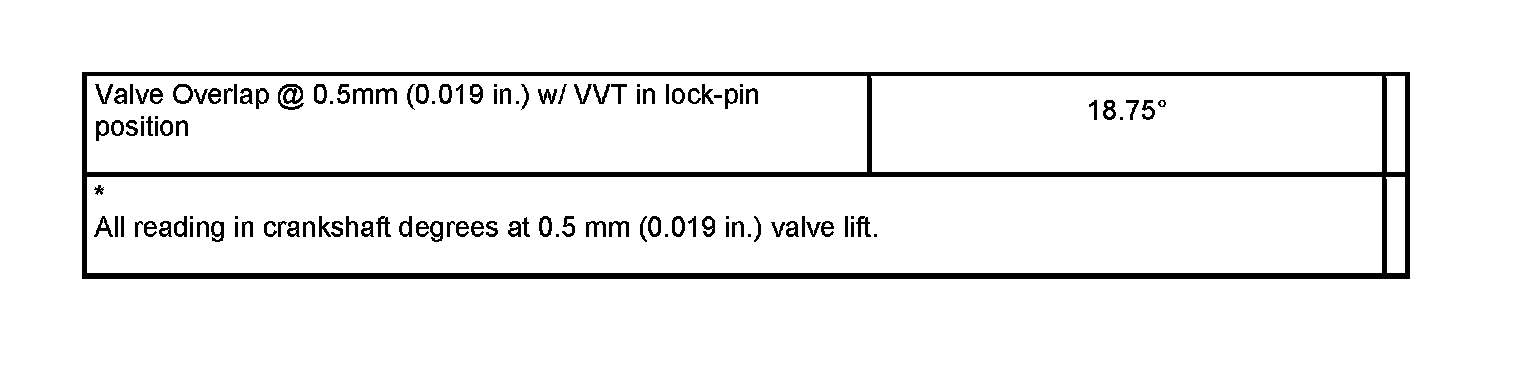

Camshaft (Part 2):
Camshaft (Part 2)

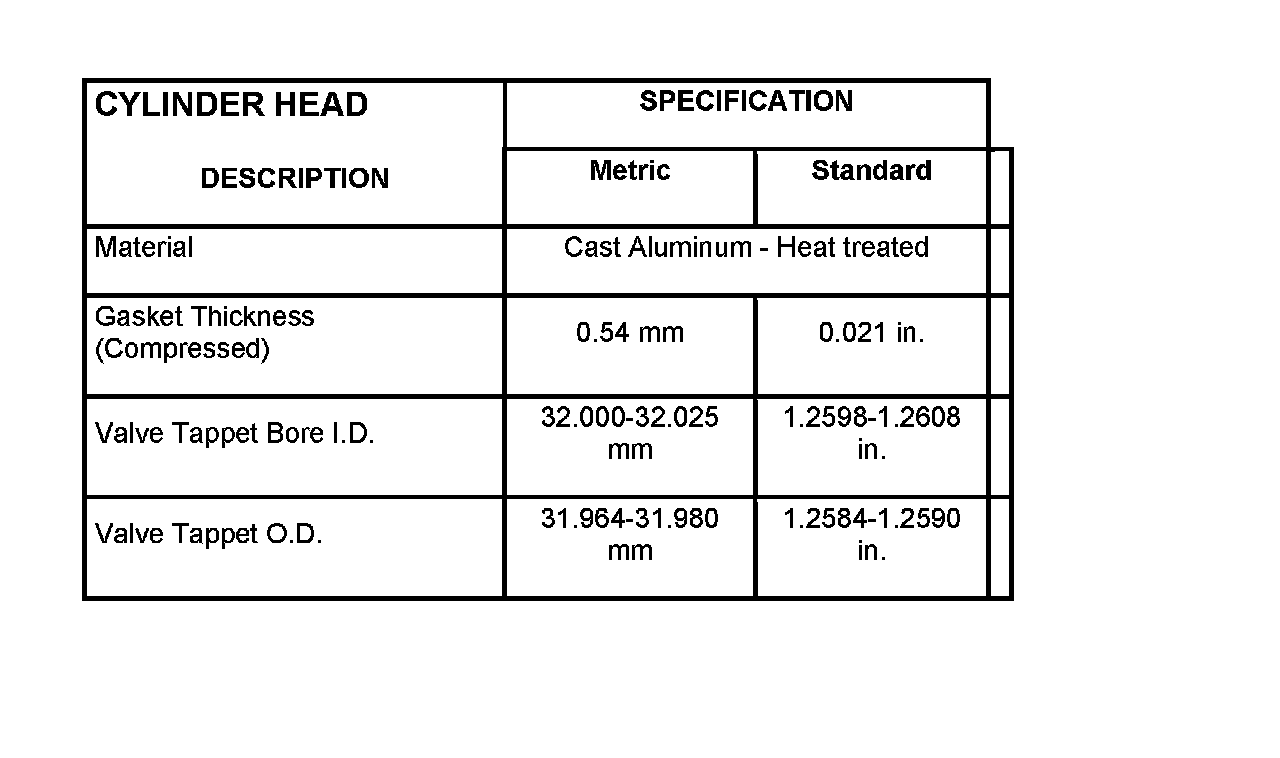

Cylinder Head:
Cylinder Head

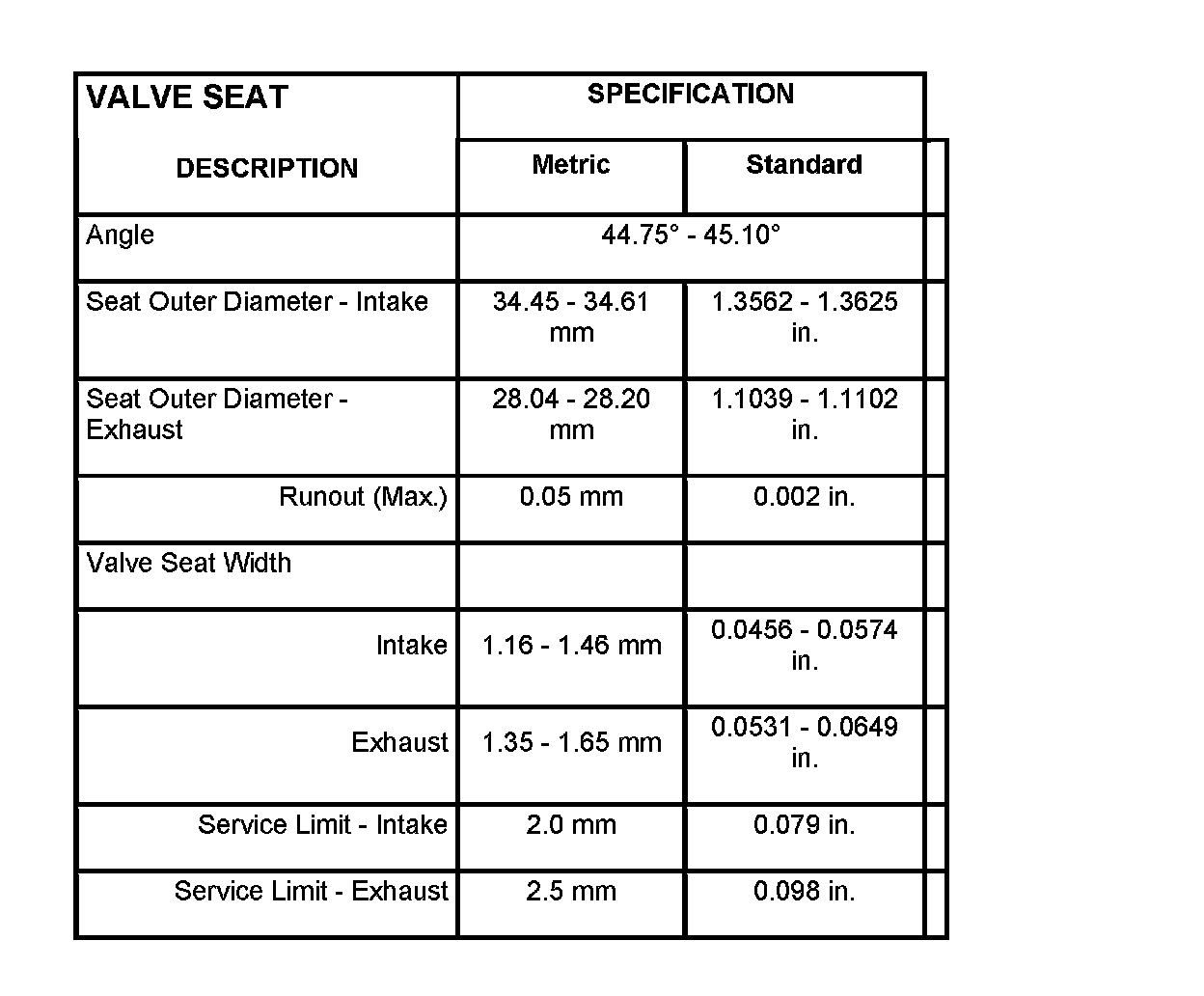

Valve Seat:
Valve Seat

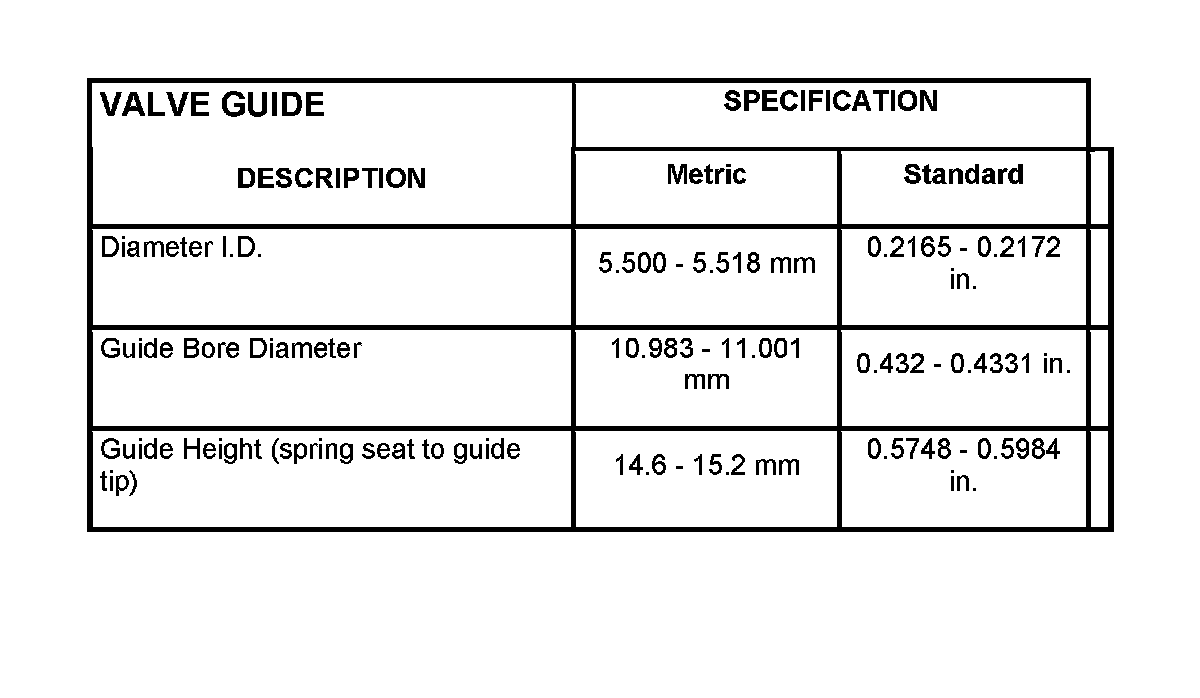

Valve Guide:
Valve Guide

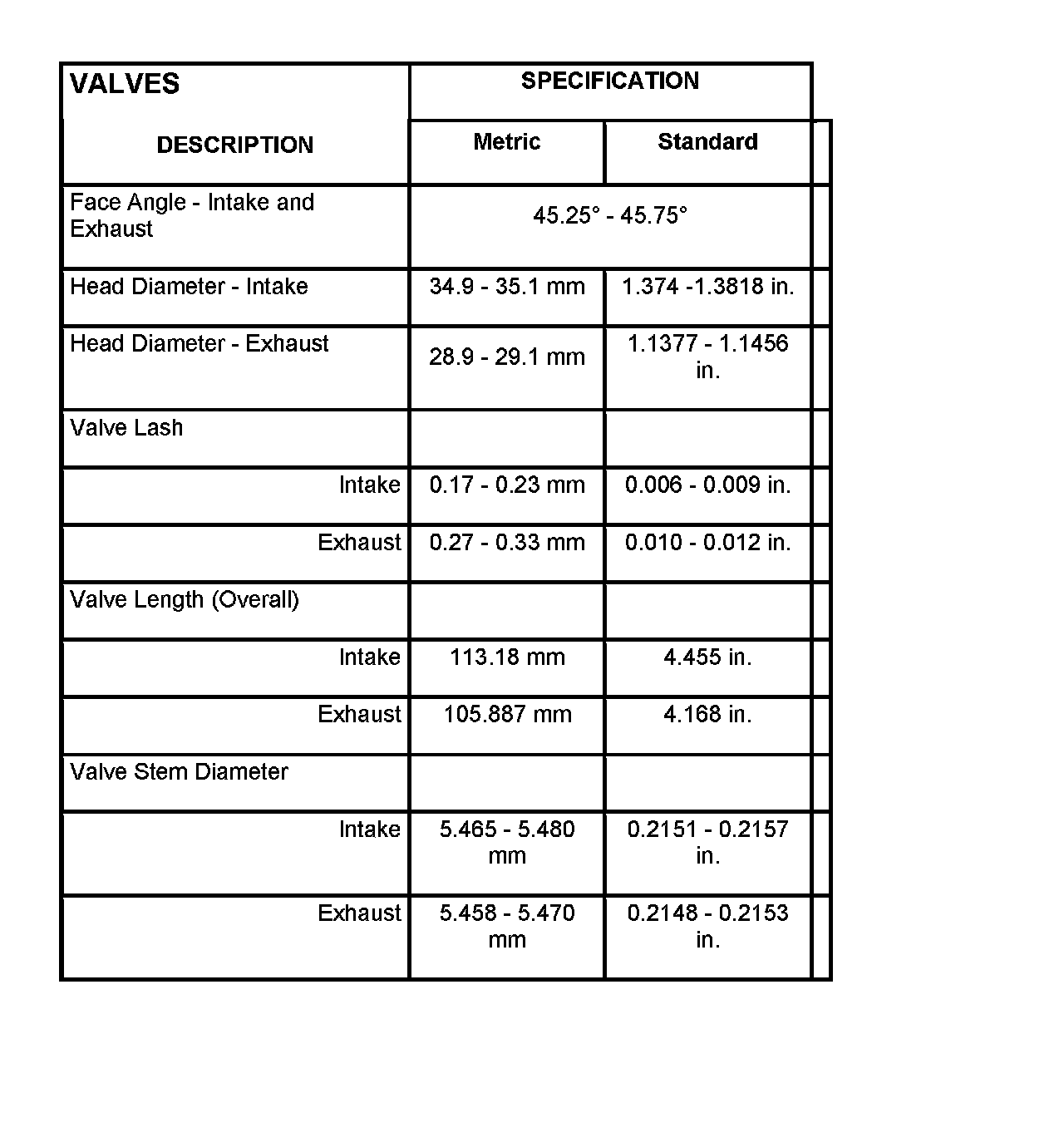

Valves:
Valves

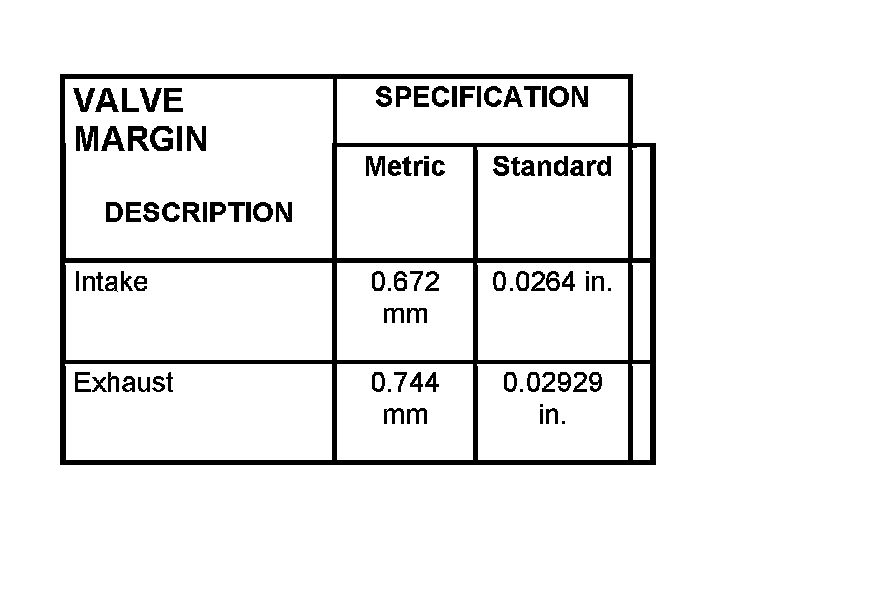

Valve Margin:
Valve Margin

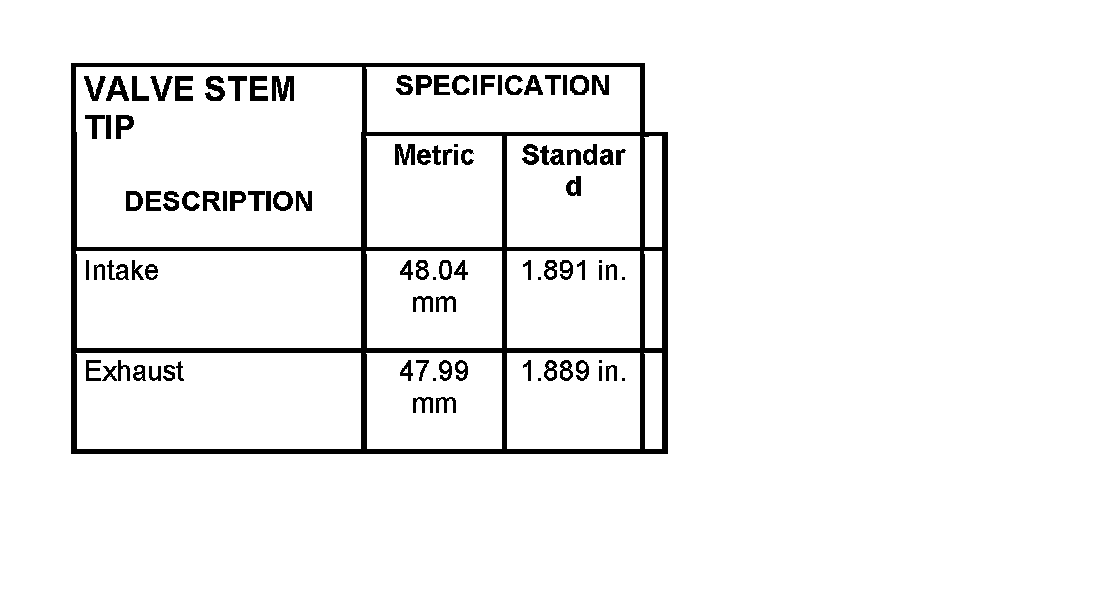

Valve Stem Tip:
Valve Stem Tip

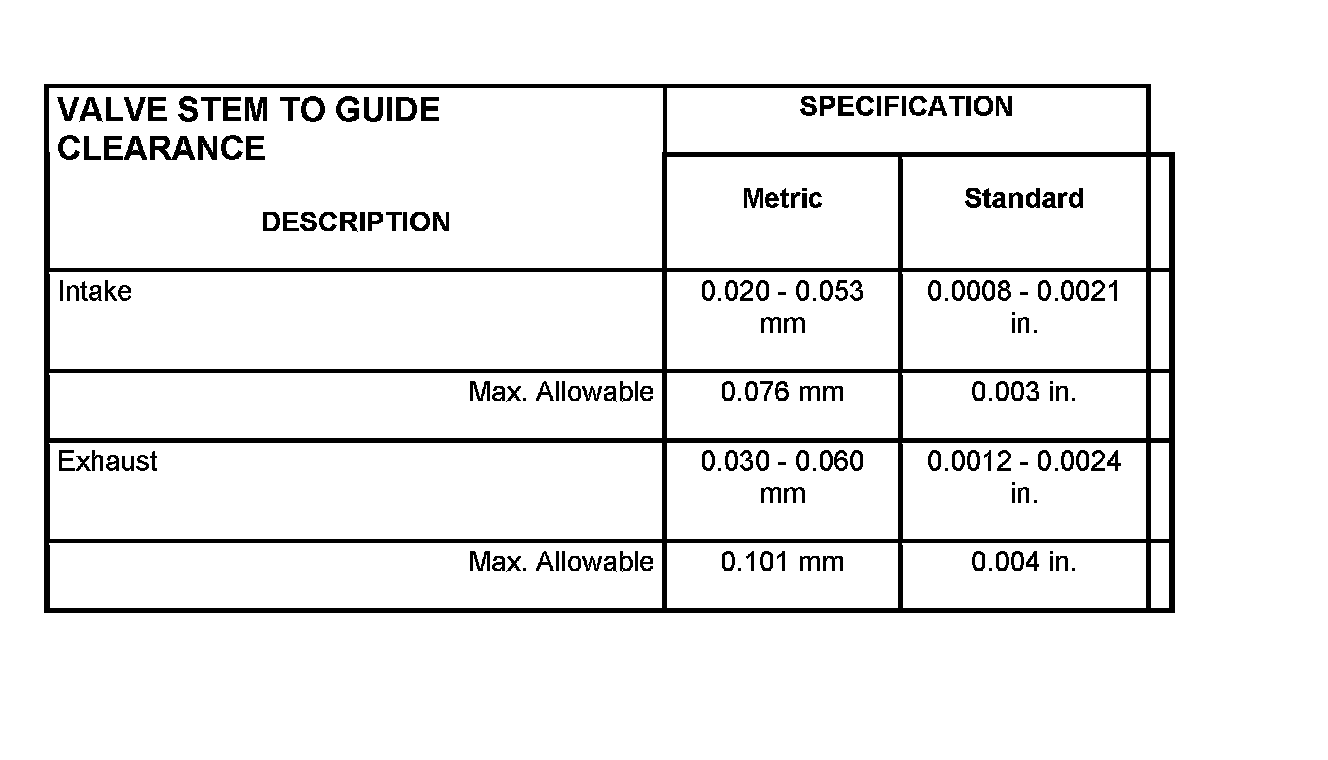

Valve Stem To Guide Clearance:
Valve Stem To Guide Clearance

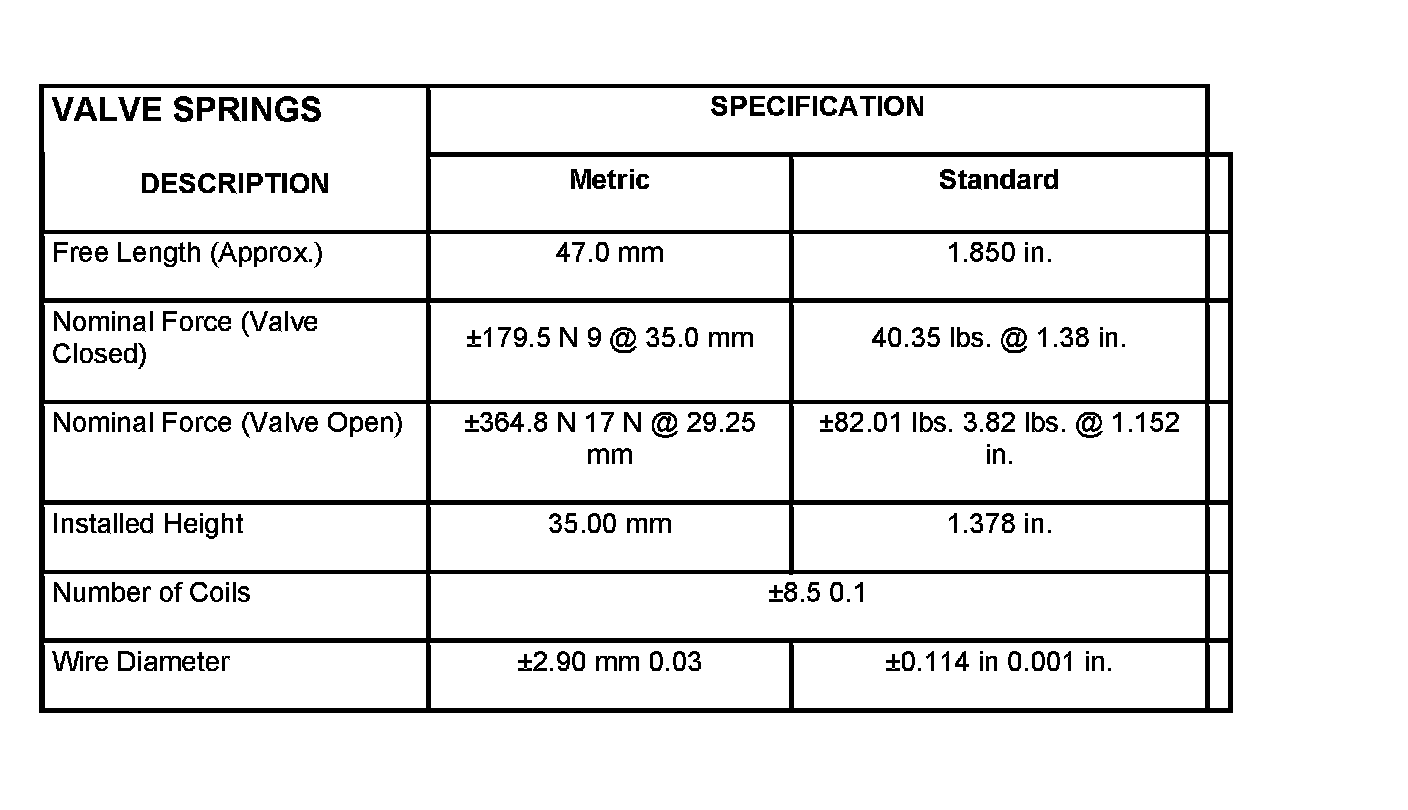

Valve Springs:
Valve Springs

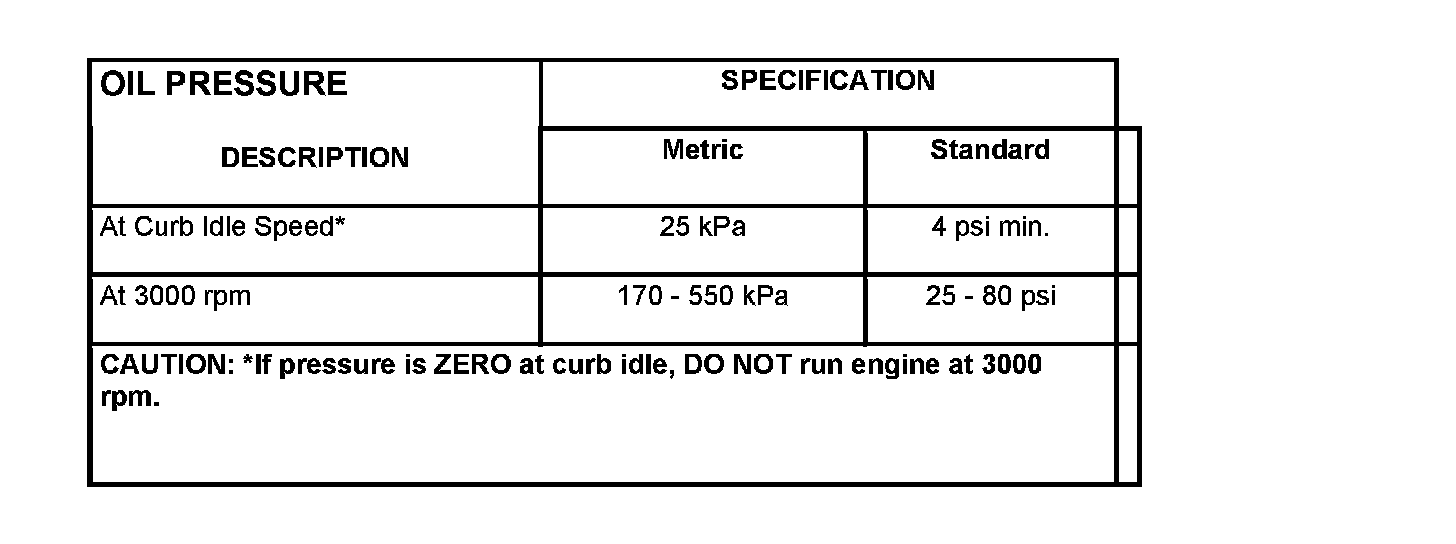

Oil Pressure:
Oil Pressure
