Power Outlet-Rear

Component ID: 296
Component : POWER OUTLET-REAR

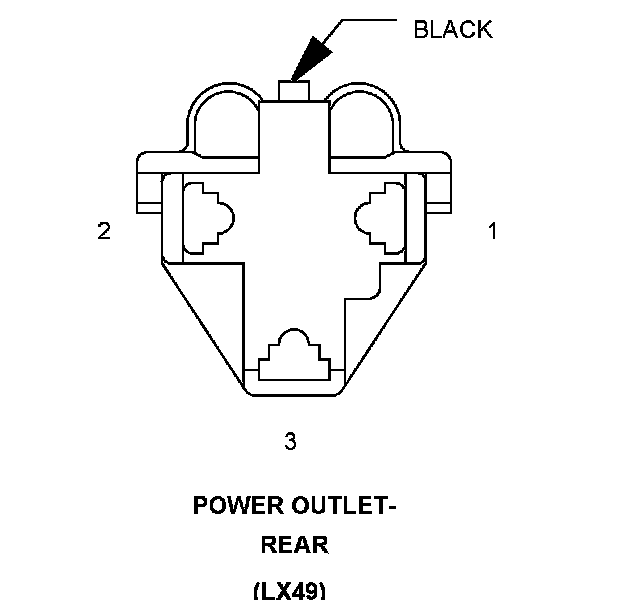

Connector:
Name : POWER OUTLET-REAR
Color : BLACK
# of pins : 3
Qualifier : (LX49)




Pin Circuit Description
1 A105 16DB/RD FUSED B(+)
2 - -
3 Z914 16BK/GY GROUND

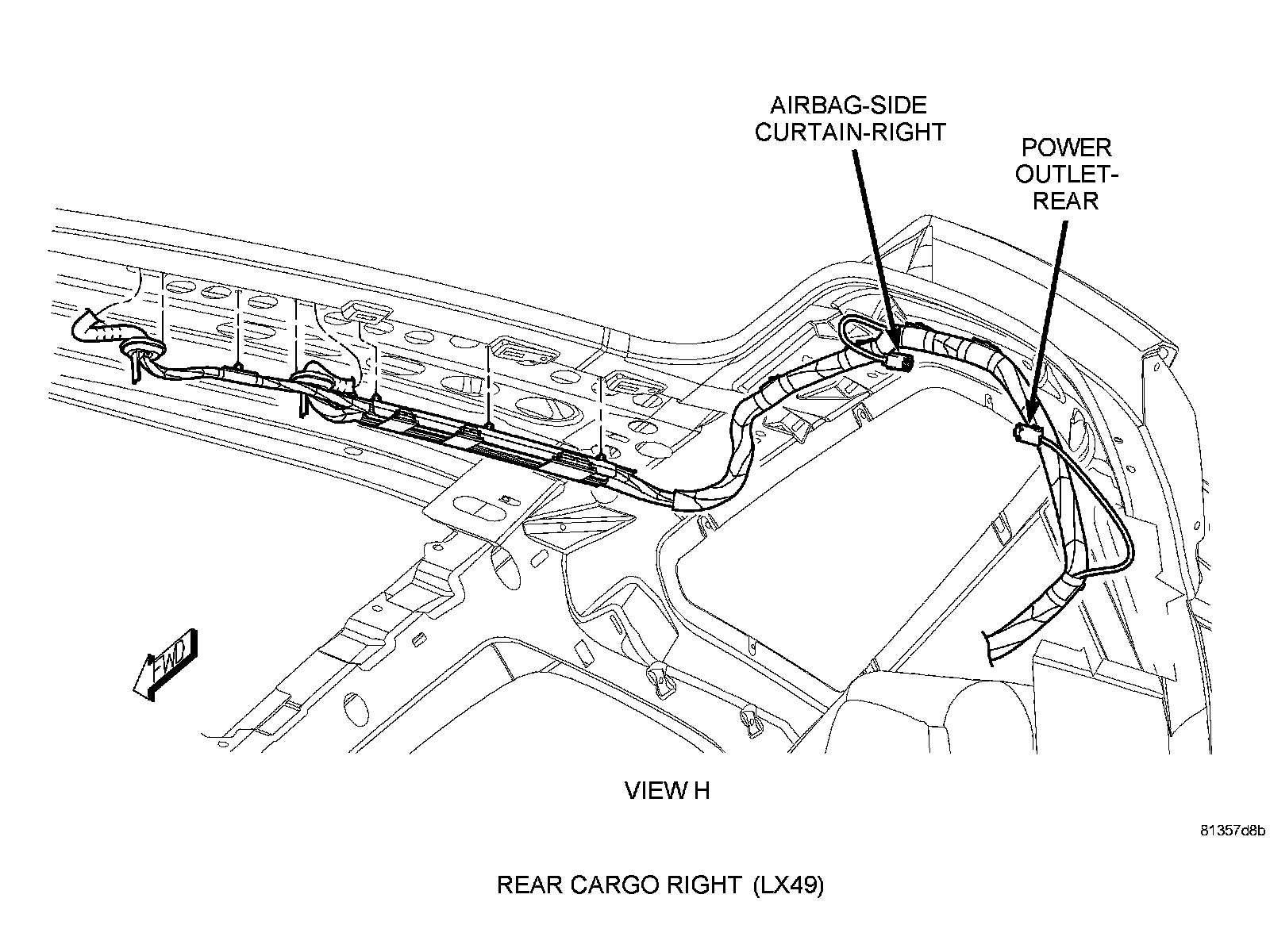

Component Location - 76




Component Location - 67
