Brake Fluid Level Sensor/Switch

Component ID: 494
Component : SENSOR-BRAKE FLUID LEVEL

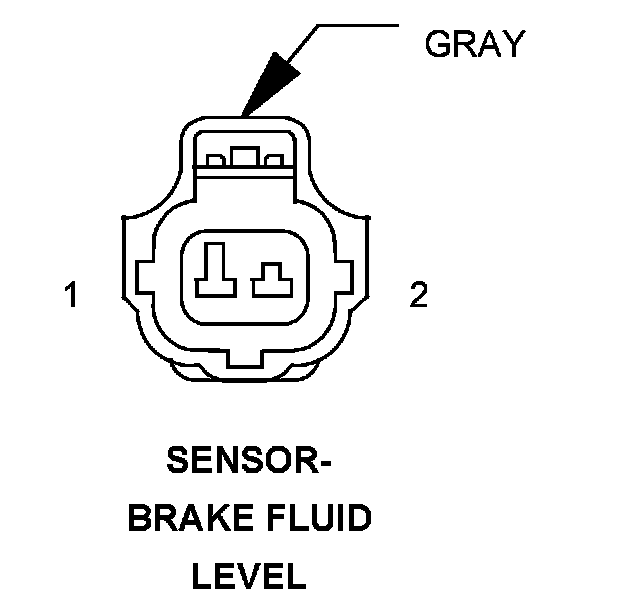

Connector:
Name : SENSOR-BRAKE FLUID LEVEL
Color : GRAY
# of pins : 2




Pin Circuit Description
1 Z902 20BK/LB GROUND
2 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE

Component Location - 7




Component Location - 8




Component Location - 14
