Switch-Power Window-Left Rear

Component ID: 582
Component : SWITCH-POWER WINDOW-LEFT REAR

Connector:
Name : SWITCH-POWER WINDOW-LEFT REAR
Color : LT. GRAY
# of pins : 6




Pin Circuit Description
1 Q611 14OR/DB MASTER WINDOW SWITCH LEFT REAR (DOWN)
2 Q211 16TN/LB LEFT REAR WINDOW DRIVER (DOWN)
3 Q111 16TN/YL LEFT REAR WINDOW DRIVER (UP)
4 Q411 14OR/LB MASTER WINDOW SWITCH LEFT REAR (UP)
5 - -
6 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT

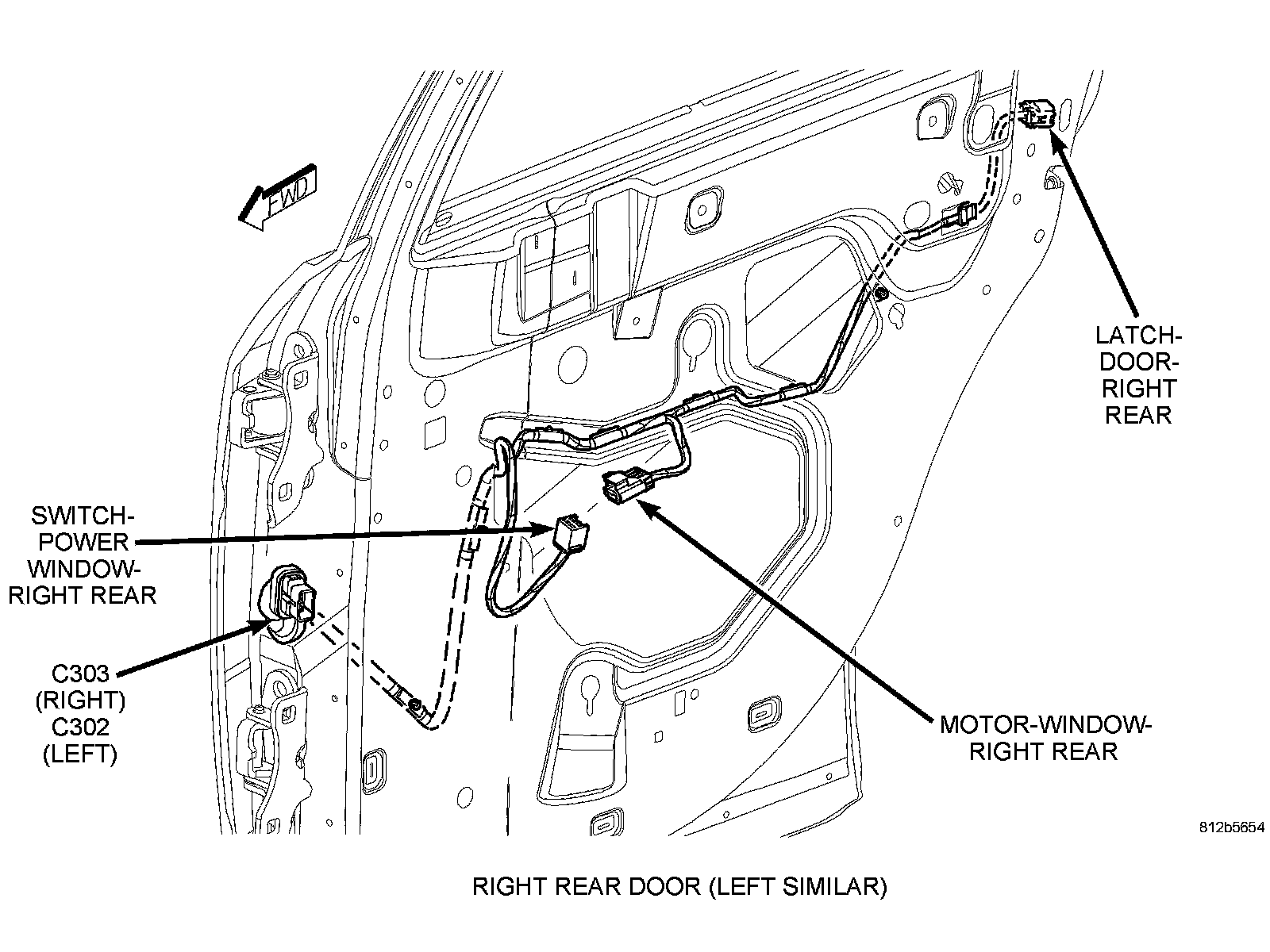

Component Location - 63
