Fuse/Relay Block

Component ID: 124
Component : FUSE/RELAY BLOCK

Connector:

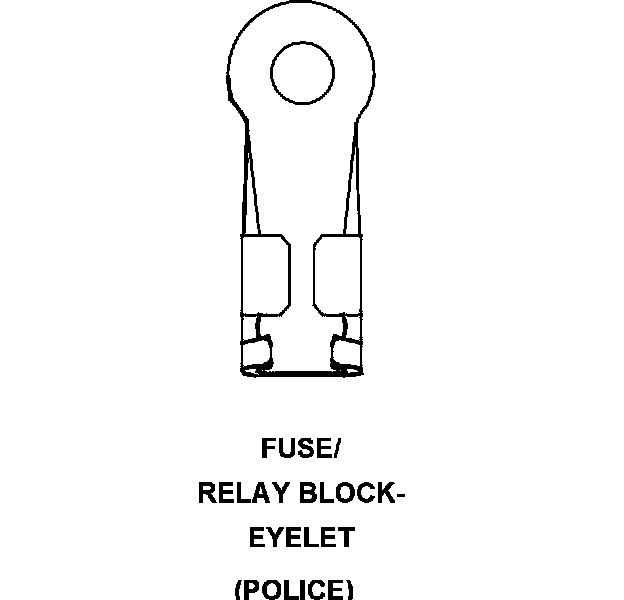

Name : FUSE/RELAY BLOCK-EYELET
Color :
# of pins : 1
Qualifier : (POLICE)




Pin Circuit Description
1 A1 6RD B(+)

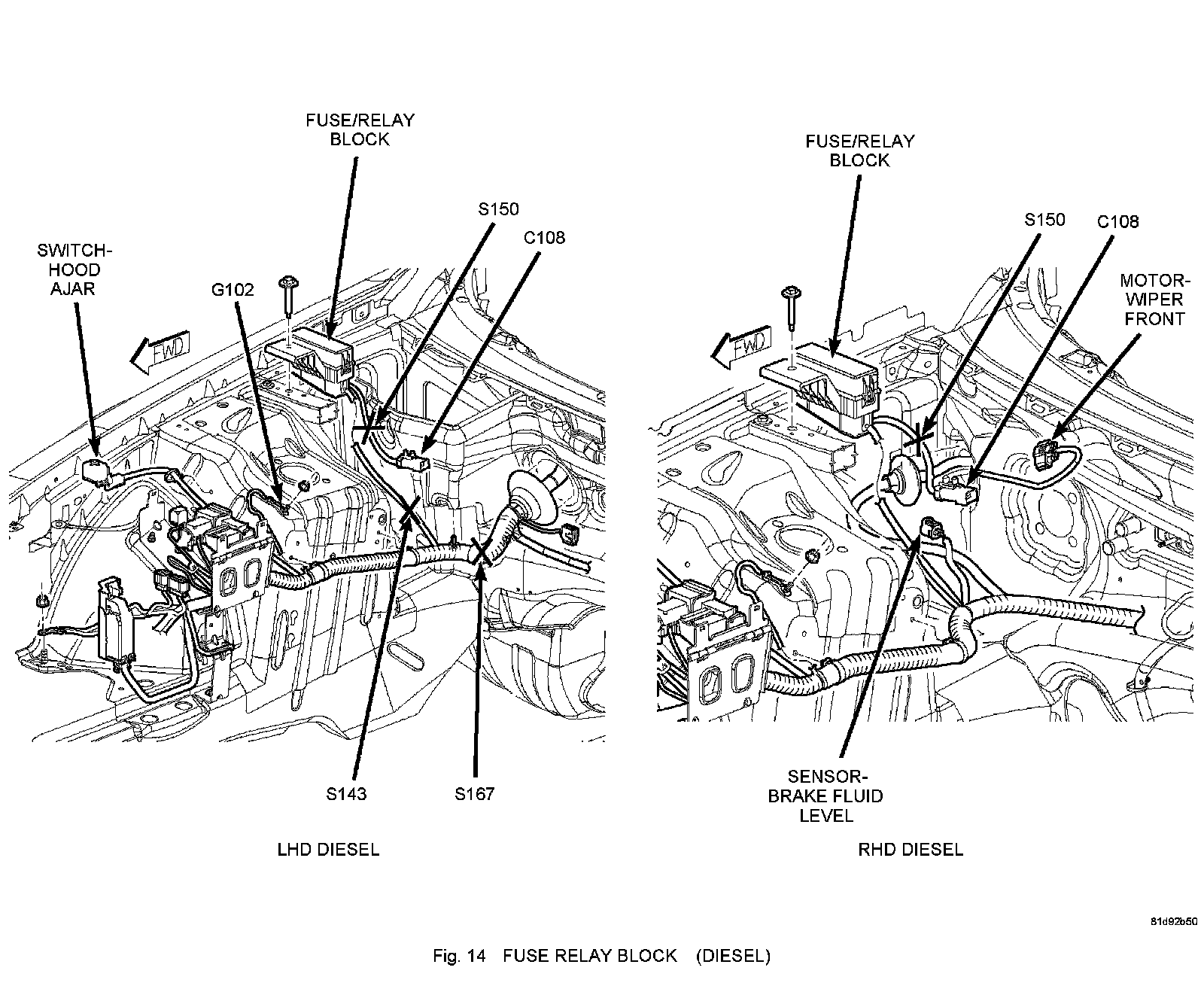

Component Location - 14




Component Location - 52
