Sensor-Knock 1

Component ID: 512
Component : SENSOR-KNOCK 1

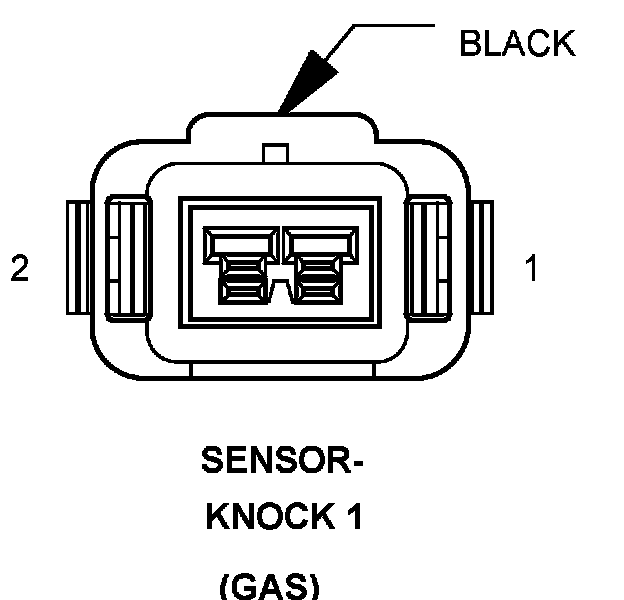

Connector:
Name : SENSOR-KNOCK 1
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K942 20BR/LG KS 1 RETURN
2 K42 20DB/YL KS 1 SIGNAL

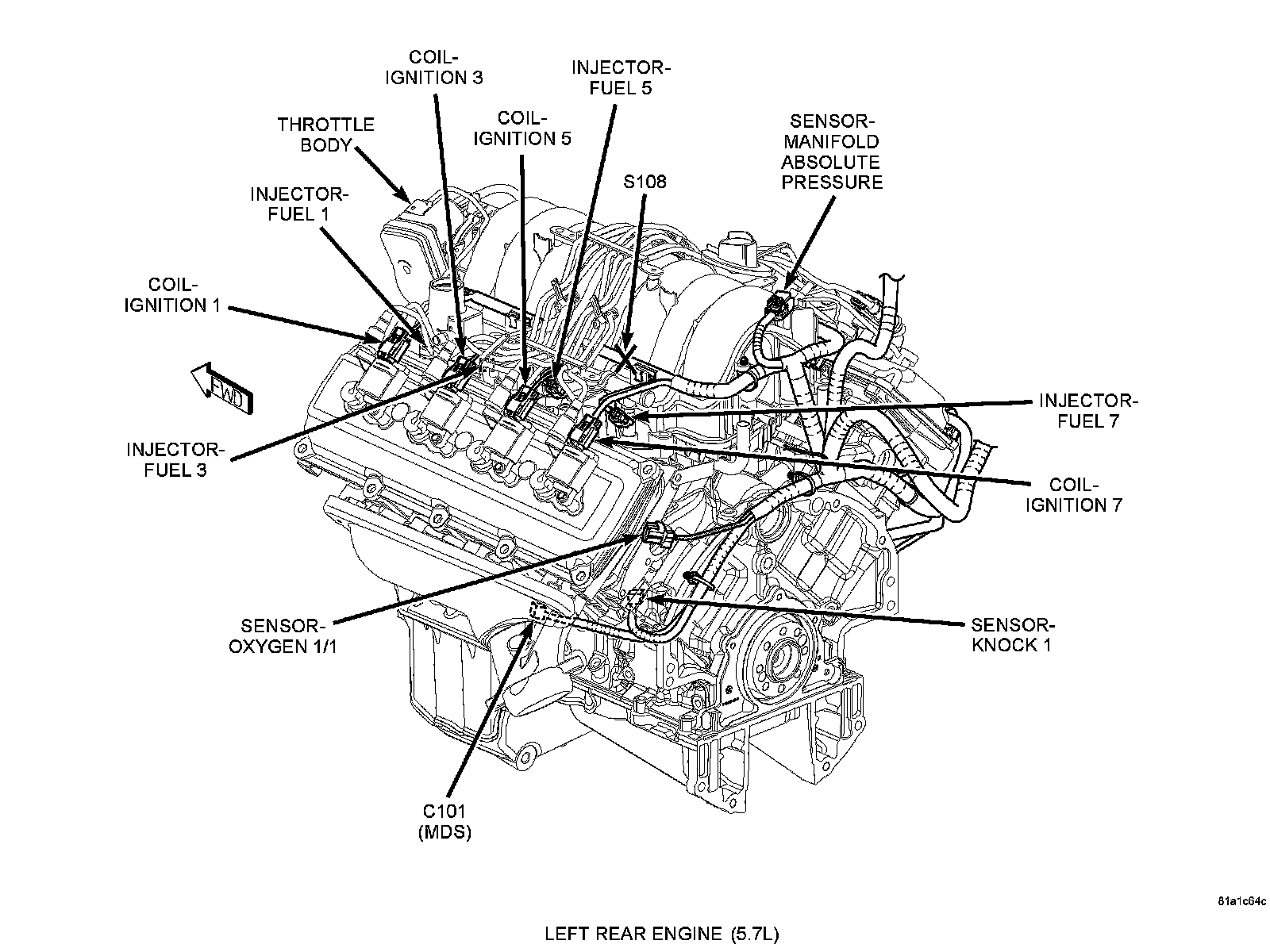

Component Location - 17

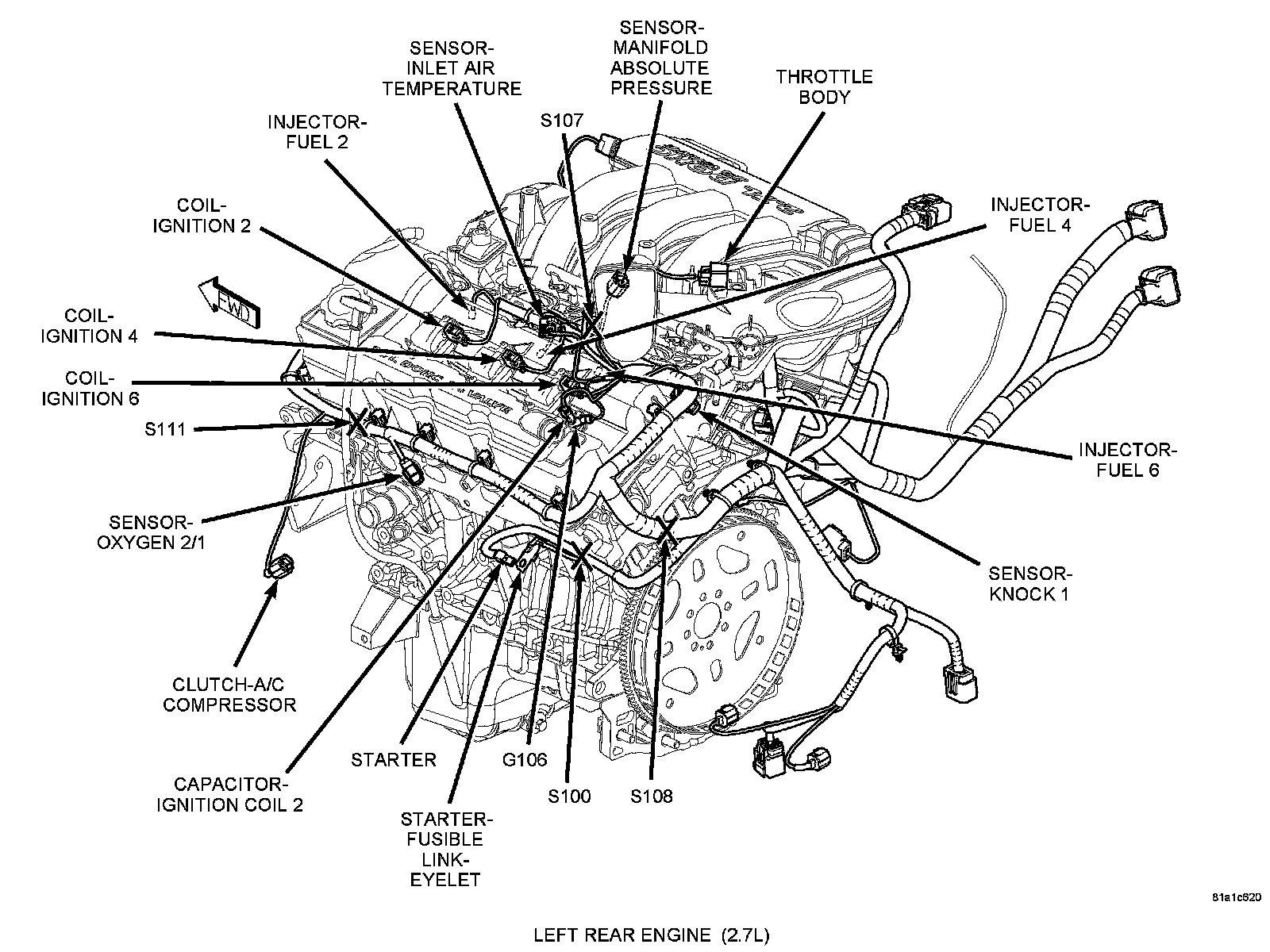

Component Location - 25




Component Location - 28
