Torque Specifications

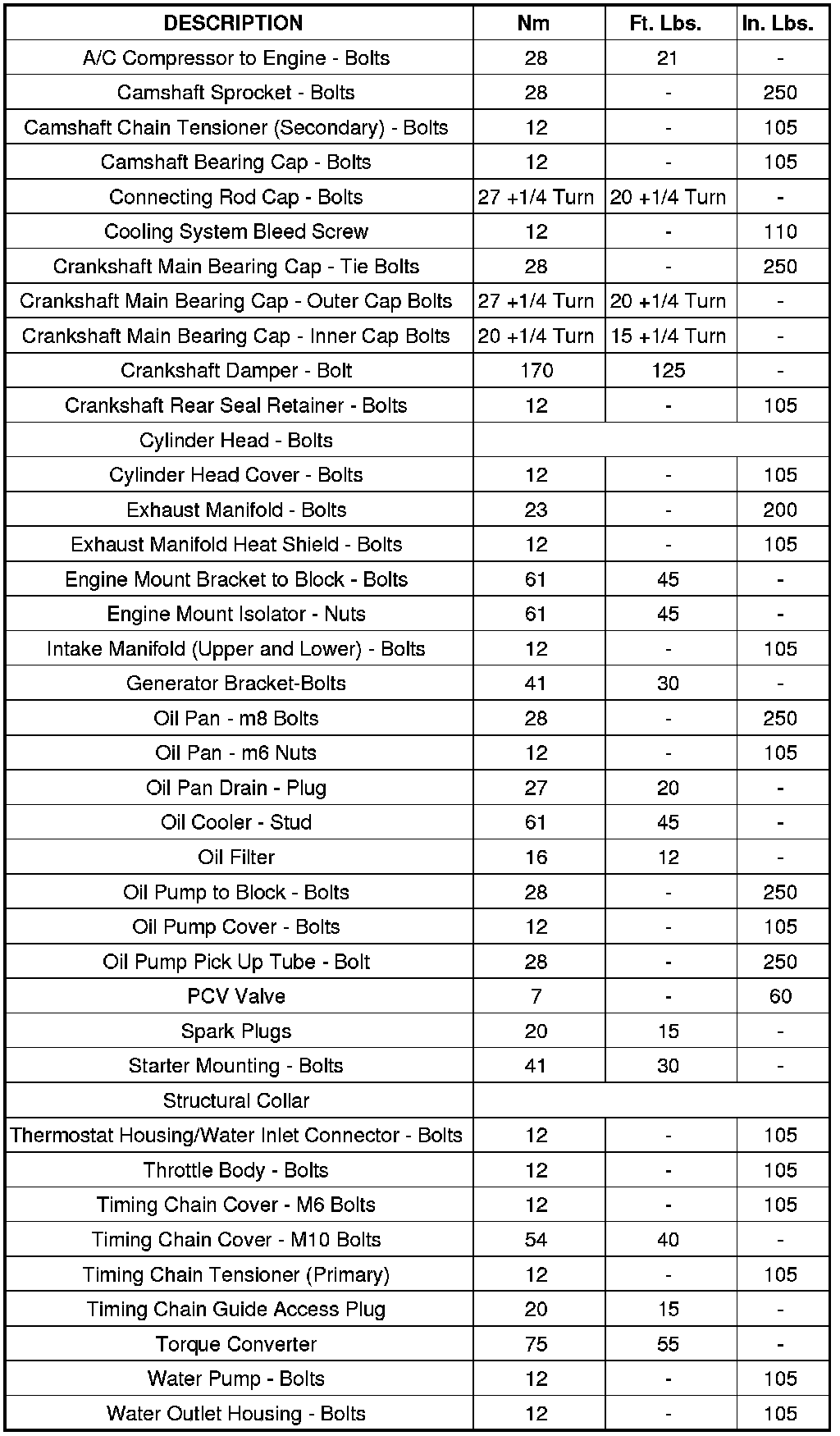

TORQUE






CRANKSHAFT MAIN BEARING BOLT TORQUE SEQUENCE

The main bearing cap bolts must be tightened in the proper sequence. First the inner main cap bolts, secondly the windage tray bolts, and lastly the main cap tie (horizontal) bolts.

CRANKSHAFT PULLEY

Crankshaft Pulley Bolt 170 Nm (125 ft. lbs.)
