Firing Order

FIRING ORDER

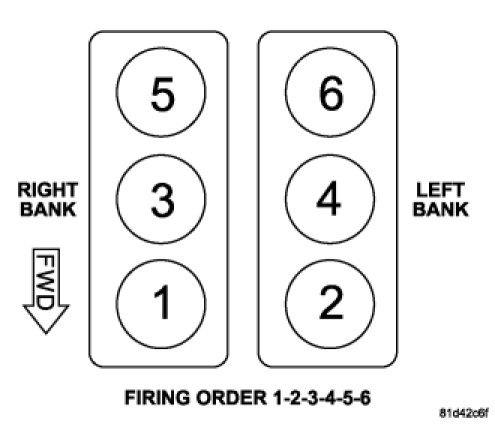

2.7/3.5L





The firing order is 1-2-3-4-5-6.


5.7/6.1L





The firing order is 1-8-4-3-6-5-7-2.

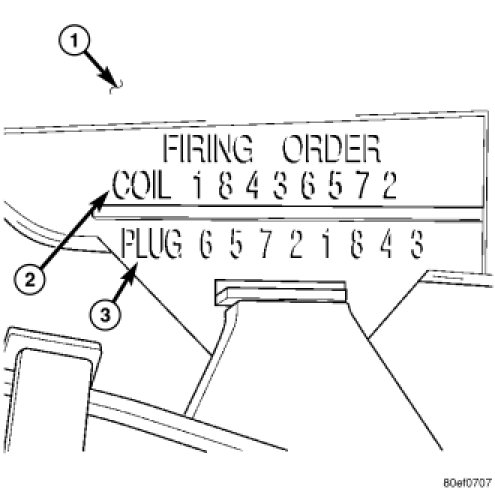

These numbers (2) and (3) can also be found on the top of the intake manifold (1) to the right of the throttle body.
