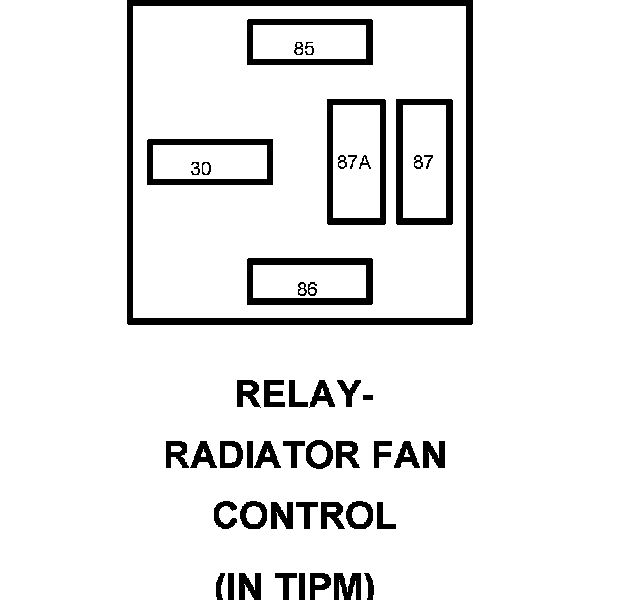

Relay-Radiator Fan Control

Component ID: 313
Component : RELAY-RADIATOR FAN CONTROL

Connector:
Name : RELAY-RADIATOR FAN CONTROL
Color :
# of pins : 5




30 INTERNAL FUSED B(+)
85 INTERNAL FUSED B(+)
86 INTERNAL RAD FAN CONTROL RELAY CONTROL
87 N24 12DG/DB RAD FAN CONTROL RELAY OUTPUT
87A - -
