Data Link Connector: Locations

Component ID: 85

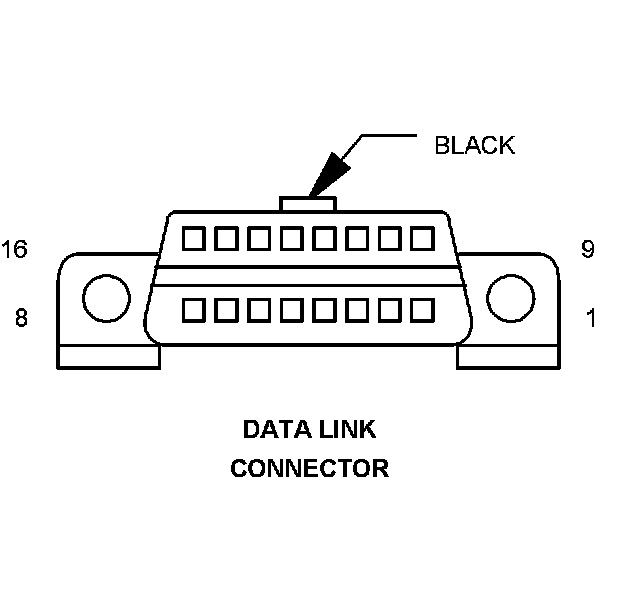

Component : DATA LINK CONNECTOR

Connector:
Name : DATA LINK CONNECTOR
Color : BLACK
# of pins : 16




Pin Circuit Description
1 - -
2 - -
3 - -
4 Z910 20BK/TN GROUND
5 Z910 20BK/TN GROUND
6 D72 20WT/LB DIAGNOSTIC CAN C (+)
7 - -
8 - -
9 - -
10 - -
11 - -
12 - -
13 - -
14 D71 20WT/DB DIAGNOSTIC CAN C (-)
15 - -
16 A106 20LB/RD FUSED B(+)

Component Location - 42




Component Location - 36




Component Location - 38




Component Location - 39
