Rear Control

REMOVAL





1. Disconnect and isolate the negative battery cable.

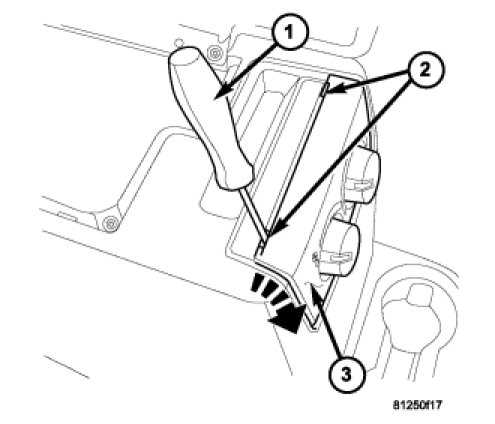

2. Using a small screwdriver or similar flat blade tool (1), gently push down on the clip retainer (2) located at each top corner of the rear A/C-heater control (3). Rotate the top of rear A/C-heater control downwards to release the two bottom retaining tabs from the slots in the center floor console.




3. Disconnect the wire harness connector (1) from the rear A/C-heater control (2).
4. Remove the rear A/C-heater control from the vehicle.
