Motor-Seat Adjuster-Rear Driver Vertical

Component ID: 197

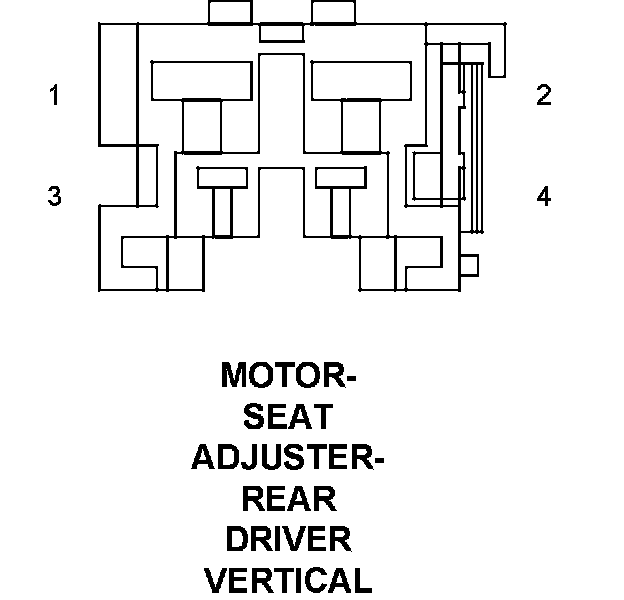

Component : MOTOR-SEAT ADJUSTER-REAR DRIVER VERTICAL

Connector:
Name : MOTOR-SEAT ADJUSTER-REAR DRIVER VERTICAL
Color :
# of pins : 4




Pin Circuit Description
1 P13 14LG/OR DRIVER SEAT REAR DOWN DRIVER
Pin Circuit Description
1 P113 14LG/WT DRIVER SEAT REAR VERTICAL DOWN DRIVER
2 P11 14LG/YL DRIVER SEAT REAR UP
2 P111 14LG/YL DRIVER SEAT REAR VERTICAL UP DRIVER
3 G492 20LB/VT DRIVER SEAT REAR VERTICAL SENSOR GROUND
4 G402 20VT/DB DRIVER SEAT REAR VERTICAL POSITION SENSE

Component Location - 39
