Installation

INSTALLATION





NOTE: The knock sensor bolt torque is higher than other sensors. If the proper torque is not applied to the knock sensor, driveability can be affected.

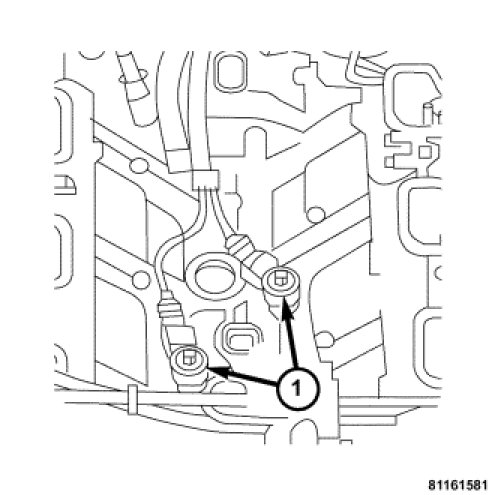

1. Position the knock sensors (1) on the engine block.
2. Install the knock sensor retaining bolts. Tighten the bolts to 20 Nm (15 ft. lbs.).
3. Connect the wire harness connectors.
4. Install the intake manifold. Intake Manifold - Installation.
