Installation

INSTALLATION

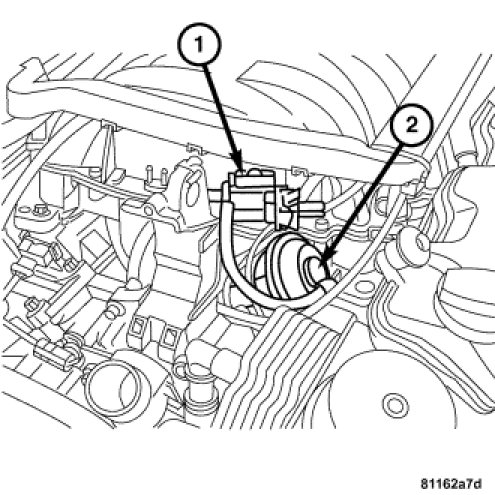

1. Install the intake manifold tune valve (2) to the intake manifold.
2. Install the tune valve arm retaining nut the valve rod. Tighten the nut to 5 Nm (44 in. lbs.).
3. Install the left hand air pump switch over valve and bolts. Tighten the bolts to 20 Nm (15 lb. ft.).
4. Connect the vacuum line and the manifold tune valve harness connector at the manifold tune valve solenoid.
5. Install the air injection pump. Installation.
6. Install the engine cover. Air Cleaner Housing - Installation.
7. Connect the negative battery cable.
