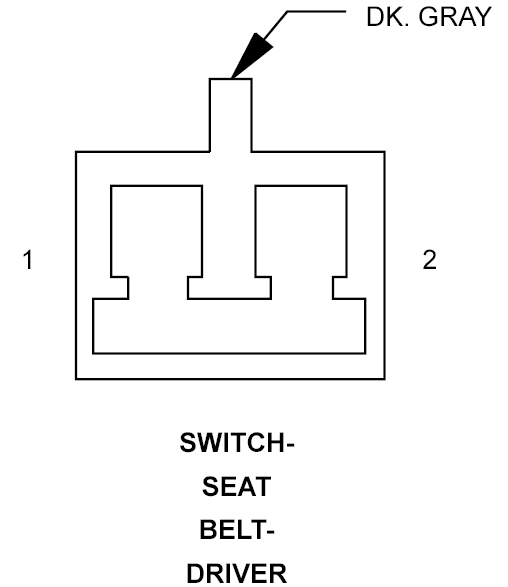

Driver Seat Belt Switch Connector End View
SWITCH-SEAT BELT-DRIVER - DK. GRAY 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G10 20VT/LG |
DRIVER SEAT BELT SWITCH SENSE |
| 2 |
Z237 20BK/YL |
GROUND |
