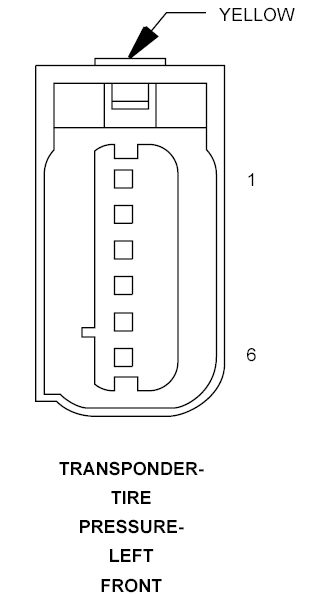

Left Front Tire Pressure Transponder Connector End View
TRANSPONDER-TIRE PRESSURE-LEFT FRONT - YELLOW 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F316 20PK/OR |
FUSED ACCESSORY RELAY OUTPUT |
| 2 |
D508 20WT/GY |
COM-LIN TIRE PRESSURE MONITOR LAN |
| 3 |
Z904 20BK/VT |
GROUND |
| 4 |
Z904 20BK/VT |
GROUND |
| 5 |
- |
- |
| 6 |
- |
- |
