Removal

3.8L

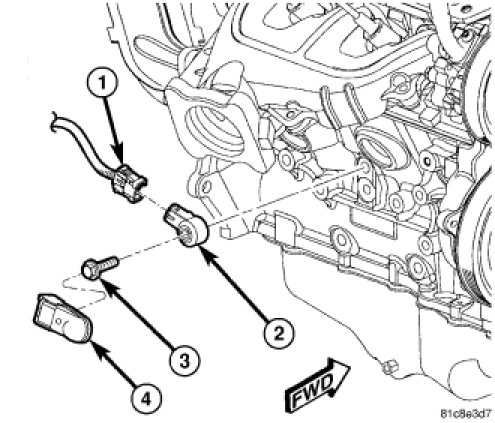

1. Disconnect and isolate negative battery cable at battery.
2. Remove knock sensor cover (4).
3. Disconnect electrical connector (1) from knock sensor (2).
4. Remove bolt (3) and knock sensor (2) from engine.
