System Specifications

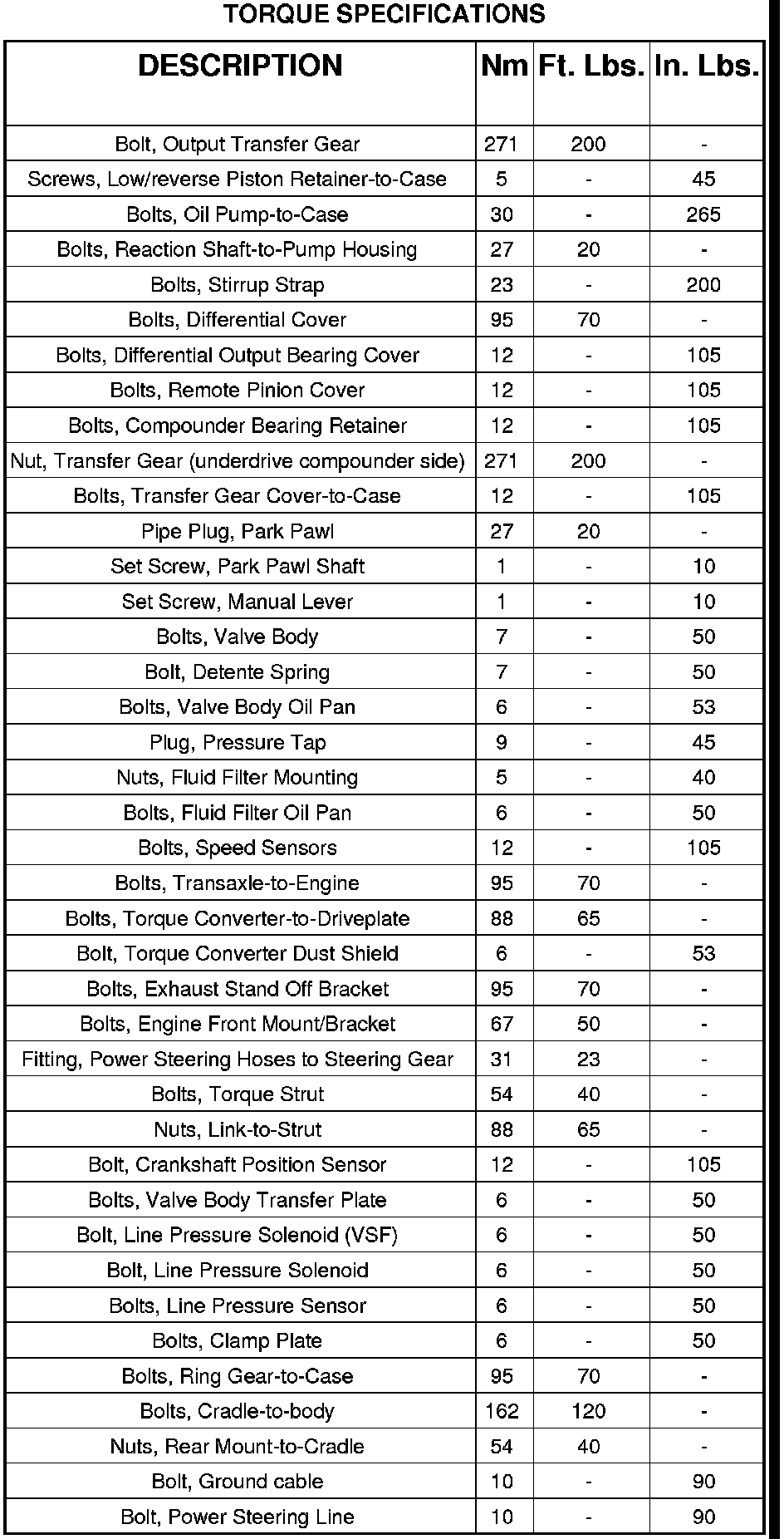

SPECIFICATIONS

FLEX PLATE TORQUE

Flex plate 95 Nm (70 ft. lbs.)

OIL PAN TORQUE

Upper valve body oil pan 6 Nm (50 in. lbs.)
